2) (10 points) A certain autonomous system (AS) is assigned a subnet which to the outside world (Internet) is advertised

[answerhappygod]

2 10 Points A Certain Autonomous System As Is Assigned A Subnet Which To The Outside World Internet Is Advertised 1 (91.04 KiB) Viewed 29 times

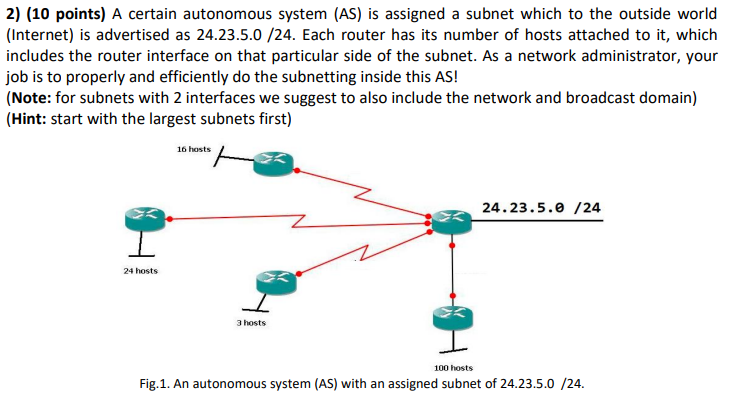

2) (10 points) A certain autonomous system (AS) is assigned a subnet which to the outside world (Internet) is advertised as 24.23.5.0/24. Each router has its number of hosts attached to it, which includes the router interface on that particular side of the subnet. As a network administrator, your job is to properly and efficiently do the subnetting inside this AS! (Note: for subnets with 2 interfaces we suggest to also include the network and broadcast domain) (Hint: start with the largest subnets first) 16 hosts 24.23.5.0/24 24 hosts 3 hosts 100 hosts Fig.1. An autonomous system (AS) with an assigned subnet of 24.23.5.0/24.
