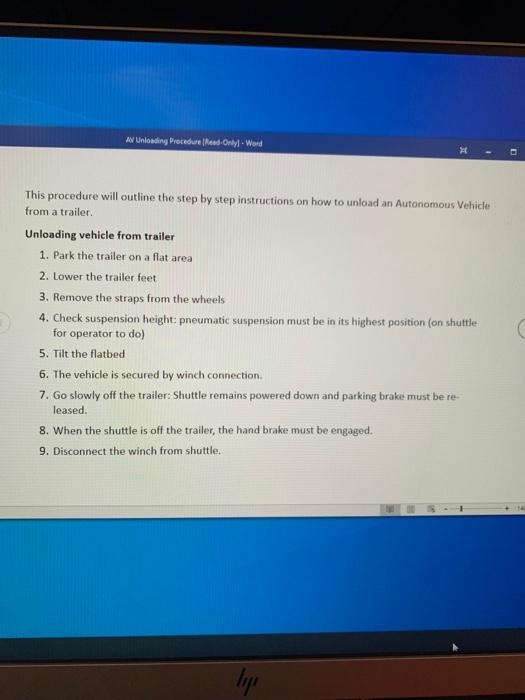

AV Unloading Procedure [Read-Only] Word * This procedure will outline the step by step instructions on how to unload an Autonomous Vehicle from a trailer. Unloading vehicle from trailer 1. Park the trailer on a flat area 2. Lower the trailer feet 3. Remove the straps from the wheels 4. Check suspension height: pneumatic suspension must be in its highest position (on shuttle for operator to do) 5. Tilt the flatbed 6. The vehicle is secured by winch connection, 7. Go slowly off the trailer: Shuttle remains powered down and parking brake must be re- leased. 8. When the shuttle is off the trailer, the hand brake must be engaged. 9. Disconnect the winch from shuttle. hip D

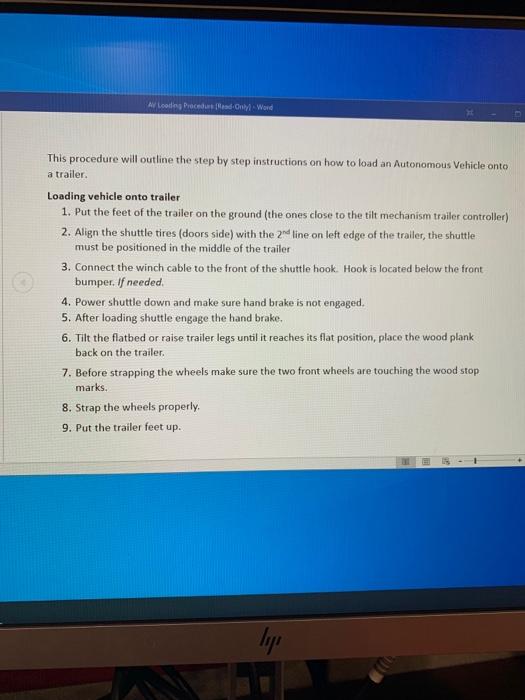

Av Loading Procedurs [Read-Only-Word This procedure will outline the step by step instructions on how to load an Autonomous Vehicle onto a trailer. Loading vehicle onto trailer 1. Put the feet of the trailer on the ground (the ones close to the tilt mechanism trailer controller) 2. Align the shuttle tires (doors side) with the 2nd line on left edge of the trailer, the shuttle must be positioned in the middle of the trailer 3. Connect the winch cable to the front of the shuttle hook. Hook is located below the front. bumper. If needed. 4. Power shuttle down and make sure hand brake is not engaged. 5. After loading shuttle engage the hand brake. 6. Tilt the flatbed or raise trailer legs until it reaches its flat position, place the wood plank back on the trailer. 7. Before strapping the wheels make sure the two front wheels are touching the wood stop marks. 8. Strap the wheels properly. 9. Put the trailer feet up. ly
