Q1: Use the slope deflection equation. Draw the shear, Moment diagrams for the sway frame and indicate key values. Take

Post by answerhappygod »

Q1 Use The Slope Deflection Equation Draw The Shear Moment Diagrams For The Sway Frame And Indicate Key Values Take 1
Q1 Use The Slope Deflection Equation Draw The Shear Moment Diagrams For The Sway Frame And Indicate Key Values Take 1 (30.74 KiB) Viewed 16 times

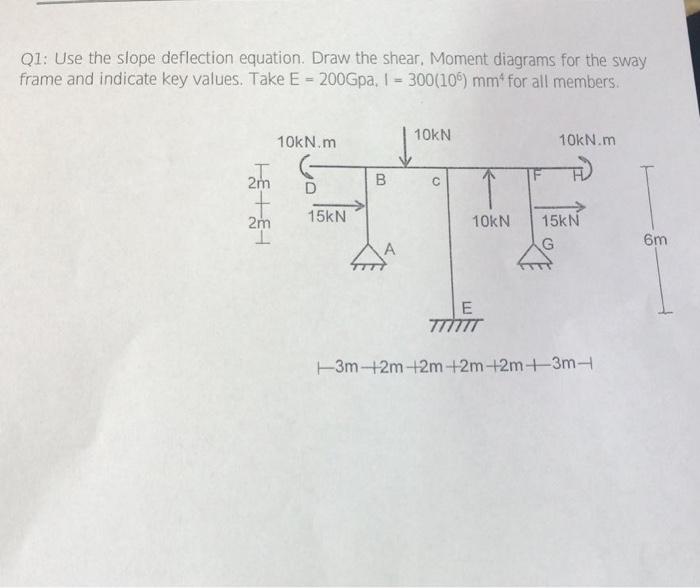

Q1: Use the slope deflection equation. Draw the shear, Moment diagrams for the sway frame and indicate key values. Take E = 200Gpa, 1 = 300(106) mm* for all members.. 10KN 10kN.m 10kN.m C D ↑ 15kN 10kN 15kN G E 777777 +3m +2m +2m +2m+2m+3m- 2m 2m I B 6m
