Draw the Bending Moment Diagram (BMD) of the frame loaded as shown in Figure 1 below. Support at A and B are pin and the

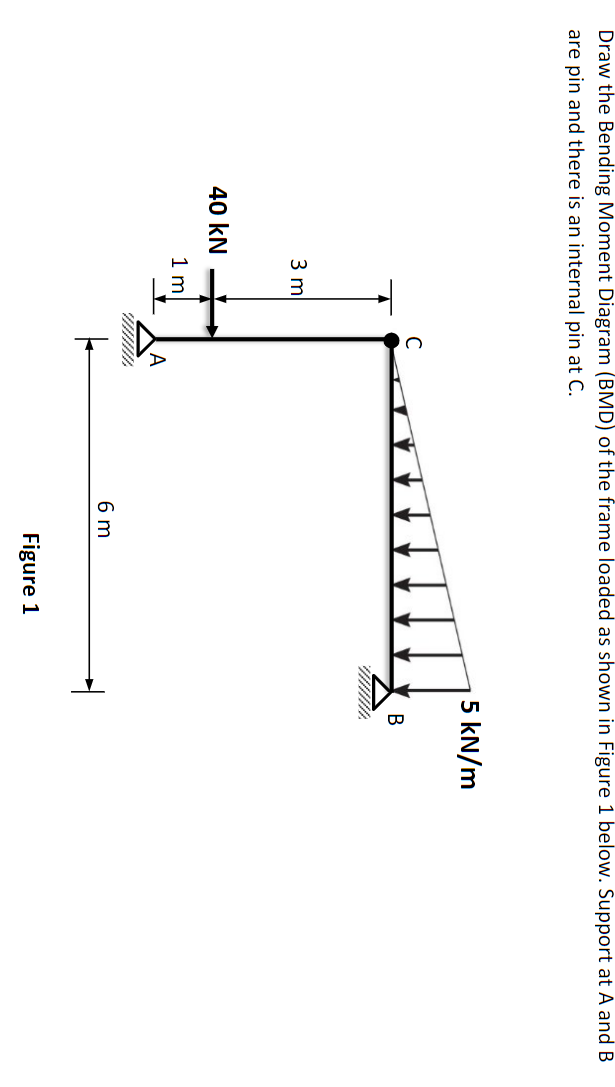

Draw the Bending Moment Diagram (BMD) of the frame loaded as shown in Figure 1 below. Support at A and B are pin and there is an internal pin at C. 5 kN/m B wwwwwww. 3 m 40 kN 1 m www 6 m Figure 1
