Problem 2 (14 marks) Solve the following questions related to the beam as shown in Figure 2 below. Assume support at A i

[answerhappygod]

Problem 2 14 Marks Solve The Following Questions Related To The Beam As Shown In Figure 2 Below Assume Support At A I 1 (34.29 KiB) Viewed 40 times

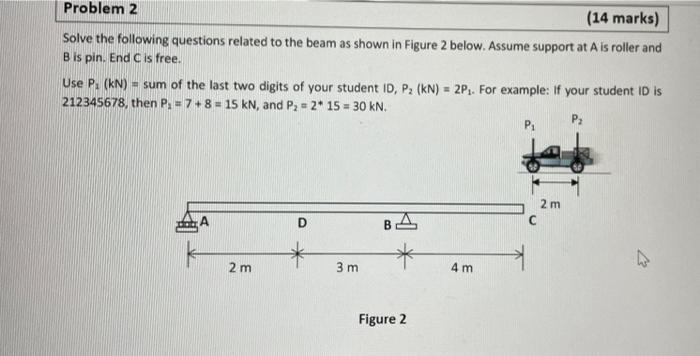

Problem 2 (14 marks) Solve the following questions related to the beam as shown in Figure 2 below. Assume support at A is roller and B is pin. End C is free. Use P₁ (kN) = sum of the last two digits of your student ID, P₂ (KN) = 2P₁. For example: If your student ID is 212345678, then P₁ = 7+8 = 15 kN, and P₂ = 2* 15 = 30 kN. P₂ D A 2 m 3m Figure 2 4m 2 m
