Plate is connected to the column using fillet welds as shown. The size of weld is 12 mm. Determine the following: Locate

Post by answerhappygod »

Plate Is Connected To The Column Using Fillet Welds As Shown The Size Of Weld Is 12 Mm Determine The Following Locate 1

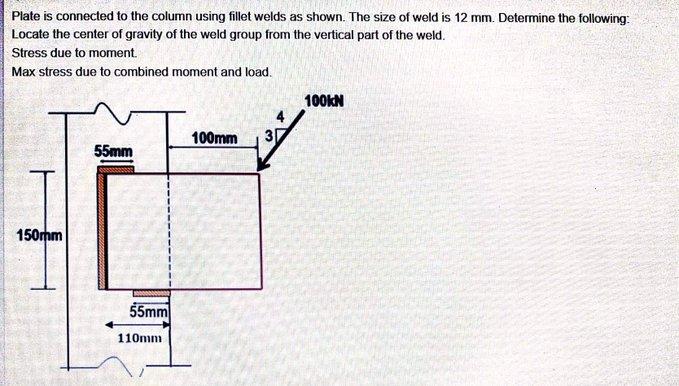

Plate Is Connected To The Column Using Fillet Welds As Shown The Size Of Weld Is 12 Mm Determine The Following Locate 1 (55.18 KiB) Viewed 25 times
Plate is connected to the column using fillet welds as shown. The size of weld is 12 mm. Determine the following: Locate the center of gravity of the weld group from the vertical part of the weld. Stress due to moment. Max stress due to combined moment and load. 100KN 100mm 55mm 150mm 55mm 110mm 27
