For the beam shown, write the shearing and bending moment functions for each segments of the beam. Also, sketch the shea

Post by answerhappygod »

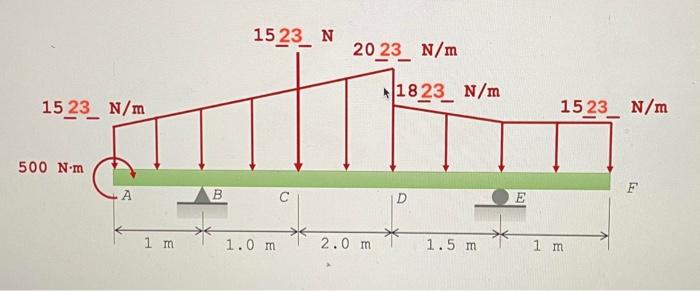

For the beam shown, write the shearing and
bending moment functions for each
segments of the beam. Also, sketch the shearing
force and bending moment diagrams
For The Beam Shown Write The Shearing And Bending Moment Functions For Each Segments Of The Beam Also Sketch The Shea 1
For The Beam Shown Write The Shearing And Bending Moment Functions For Each Segments Of The Beam Also Sketch The Shea 1 (23.21 KiB) Viewed 24 times
15 23 N/m A 500 N-m 1 m B 15 23 N C 1.0 m 20 23 N/m 2.0 m 1823 N/m 1.5 m E 15 23 N/m 1 m G
