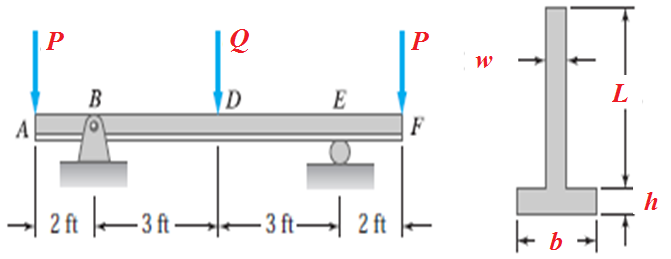

FULL SOLUTION PLEASE! For the beam shown, calculate the
magnitude of the bending stress (in psi) at a point 0.96 in
from the bottom of the beam on a section 2.14 feet to the right of
B if P = 2285 lb, Q = 8323 lb, w = 1.41 in, L = 7.83 in, b =
3.92 in, and h = 1.46 in. Round off the final answer to two decimal
places.
Full Solution Please For The Beam Shown Calculate The Magnitude Of The Bending Stress In Psi At A Point 0 96 In From 1 (30.5 KiB) Viewed 18 times
P B D E 2 ft 3 ft 3 ft 2 ft P F W |+b+ L h
