USE NSCP 2015

Post by answerhappygod »

USE NSCP 2015
Use Nscp 2015 1
Use Nscp 2015 1 (85.93 KiB) Viewed 12 times

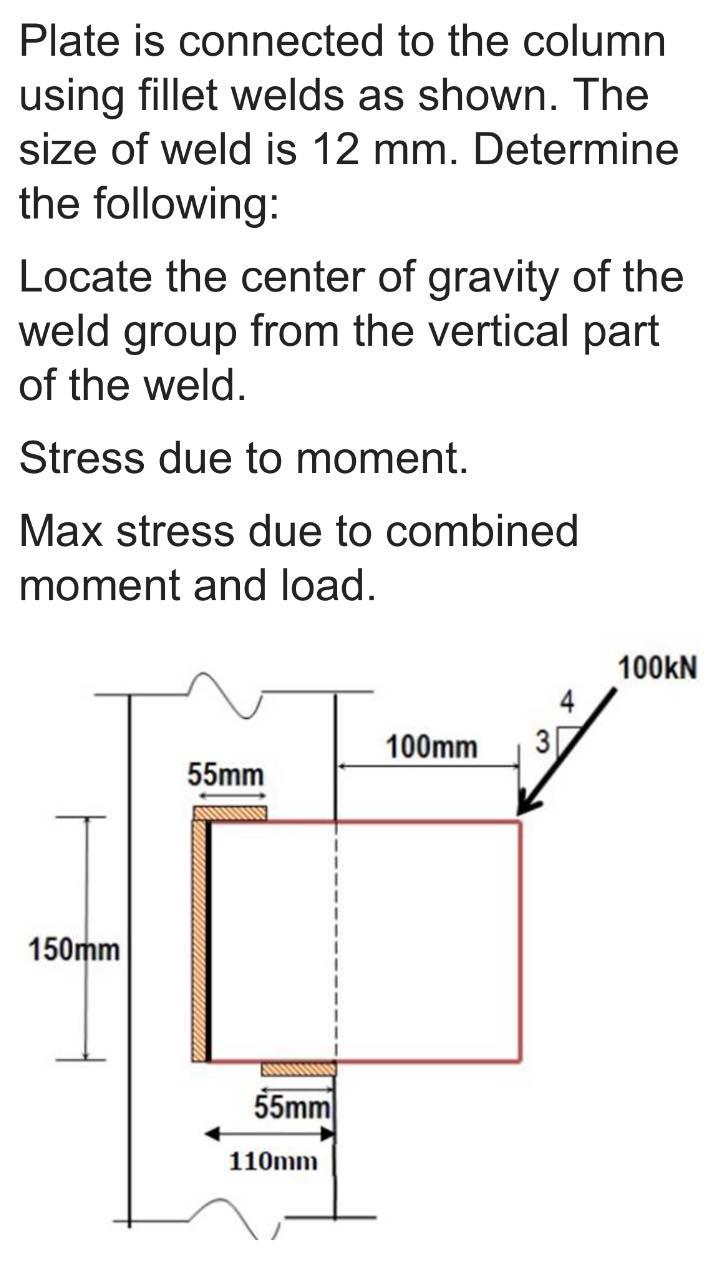

Plate is connected to the column using fillet welds as shown. The size of weld is 12 mm. Determine the following: Locate the center of gravity of the weld group from the vertical part of the weld. Stress due to moment. Max stress due to combined moment and load. 4 100mm 55mm 150mm 55mm 110mm 3 100KN
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
