4m B 2 5 3 3m C 4 3m 20kN A truss as shown in Figure is made of steel (E= 2.105 MPa) using square section with Area = 10

Post by answerhappygod »

4m B 2 5 3 3m C 4 3m 20kn A Truss As Shown In Figure Is Made Of Steel E 2 105 Mpa Using Square Section With Area 10 1
4m B 2 5 3 3m C 4 3m 20kn A Truss As Shown In Figure Is Made Of Steel E 2 105 Mpa Using Square Section With Area 10 1 (38.18 KiB) Viewed 22 times

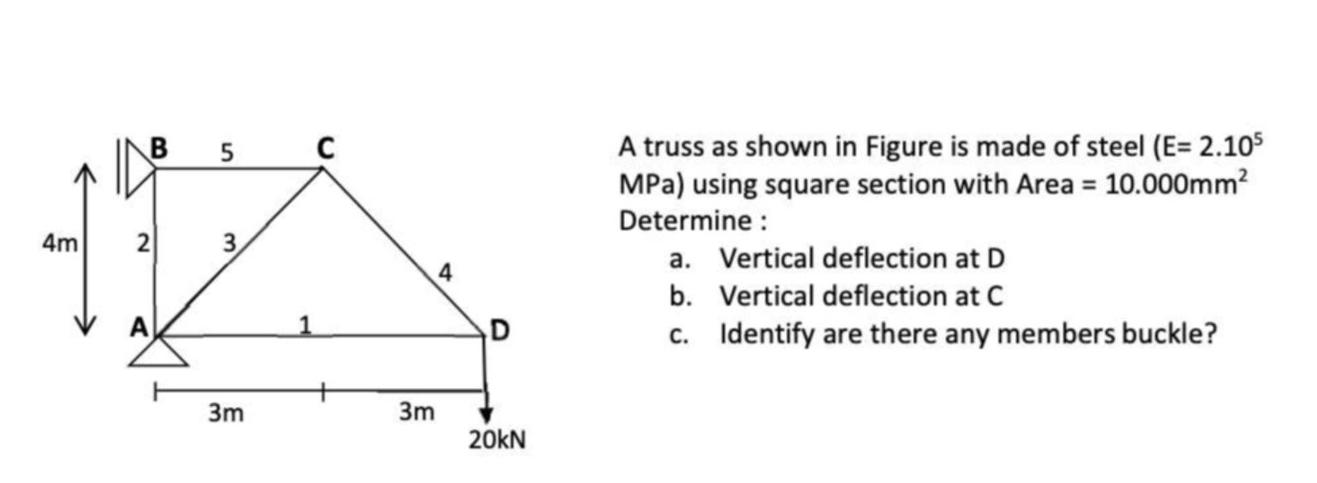

4m B 2 5 3 3m C 4 3m 20kN A truss as shown in Figure is made of steel (E= 2.105 MPa) using square section with Area = 10.000mm² Determine : a. Vertical deflection at D b. Vertical deflection at C c. Identify are there any members buckle?
