Question 5 The beam in Figure Q5 is subjected to a uniform dead load of 1.2 kN/m and a single live load of 40 kN. Assume

[answerhappygod]

Question 5 The Beam In Figure Q5 Is Subjected To A Uniform Dead Load Of 1 2 Kn M And A Single Live Load Of 40 Kn Assume 1 (31.62 KiB) Viewed 14 times

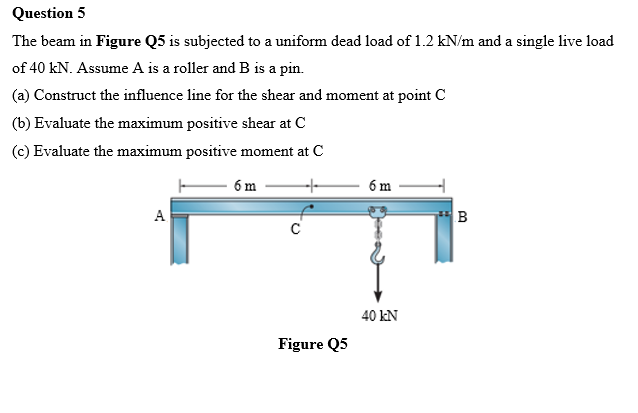

Question 5 The beam in Figure Q5 is subjected to a uniform dead load of 1.2 kN/m and a single live load of 40 kN. Assume A is a roller and B is a pin. (a) Construct the influence line for the shear and moment at point C (b) Evaluate the maximum positive shear at C (c) Evaluate the maximum positive moment at C ㅏ 6 m 6 m A B с 40 kN Figure Q5
