b) A statically indeterminate beam is indicated in Figure 1(b). Using the Force Method and applied to the load given. i)

Post by answerhappygod »

B A Statically Indeterminate Beam Is Indicated In Figure 1 B Using The Force Method And Applied To The Load Given I 1
B A Statically Indeterminate Beam Is Indicated In Figure 1 B Using The Force Method And Applied To The Load Given I 1 (35.46 KiB) Viewed 25 times

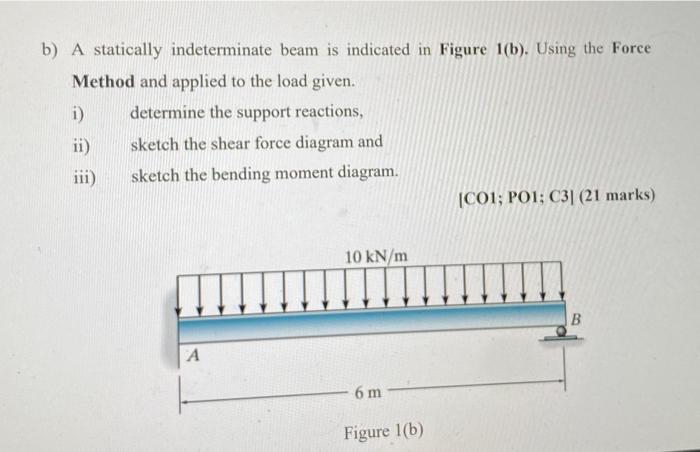

b) A statically indeterminate beam is indicated in Figure 1(b). Using the Force Method and applied to the load given. i) determine the support reactions, ii) sketch the shear force diagram and sketch the bending moment diagram. iii) [CO1; PO1; C31 (21 marks) 10 kN/m B A 6 m Figure 1(b)
