Given is a 350x650mm rectangular bars having an f'c=28 MPa, fy=420 MPa, Vu =190 KN, Tu=30 KN-m and 2050 sq mm As require

[answerhappygod]

Given Is A 350x650mm Rectangular Bars Having An F C 28 Mpa Fy 420 Mpa Vu 190 Kn Tu 30 Kn M And 2050 Sq Mm As Require 1 (16.59 KiB) Viewed 24 times

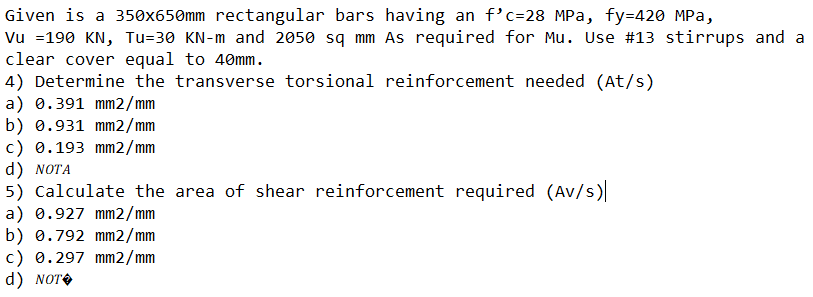

Given is a 350x650mm rectangular bars having an f'c=28 MPa, fy=420 MPa, Vu =190 KN, Tu=30 KN-m and 2050 sq mm As required for Mu. Use #13 stirrups and a clear cover equal to 40mm. 4) Determine the transverse torsional reinforcement needed (At/s) a) 0.391 mm2/mm b) 0.931 mm2/mm c) 0.193 mm2/mm d) NOTA 5) Calculate the area of shear reinforcement required (Av/s)| a) 0.927 mm2/mm b) 0.792 mm2/mm c) 0.297 mm2/mm d) NOT
