Find the reactions at the supports A and B for the beam given below. The length of the beam is 14 m and weighs 32 kN. Th

[answerhappygod]

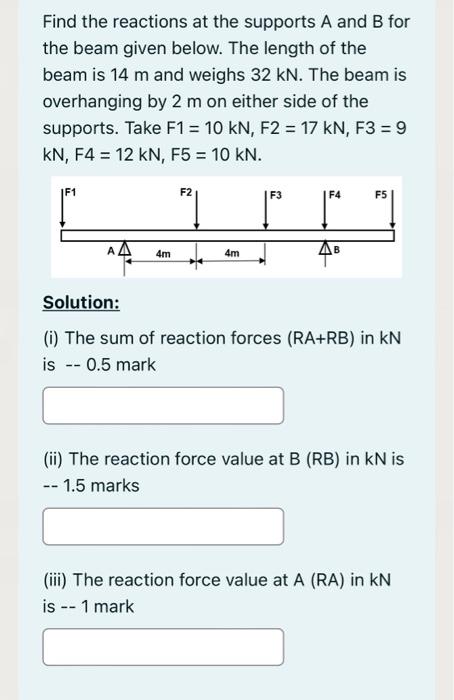

Find The Reactions At The Supports A And B For The Beam Given Below The Length Of The Beam Is 14 M And Weighs 32 Kn Th 1 (39.95 KiB) Viewed 14 times

Find the reactions at the supports A and B for the beam given below. The length of the beam is 14 m and weighs 32 kN. The beam is overhanging by 2 m on either side of the supports. Take F1 = 10 kN, F2 = 17 KN, F3 = 9 KN, F4 = 12 kN, F5 = 10 KN. IF1 F2 F3 F4 F5 4m 4m B Solution: (i) The sum of reaction forces (RA+RB) in KN is -- 0.5 mark (ii) The reaction force value at B (RB) in kN is -- 1.5 marks (iii) The reaction force value at A (RA) in KN is -- 1 mark
