Q.3) The figure shows a hollow cylindrical shaft of outer diameter do = 50 mm and inner diameter di = 40 mm is subjected

Post by answerhappygod »

Q 3 The Figure Shows A Hollow Cylindrical Shaft Of Outer Diameter Do 50 Mm And Inner Diameter Di 40 Mm Is Subjected 1
Q 3 The Figure Shows A Hollow Cylindrical Shaft Of Outer Diameter Do 50 Mm And Inner Diameter Di 40 Mm Is Subjected 1 (88.49 KiB) Viewed 22 times

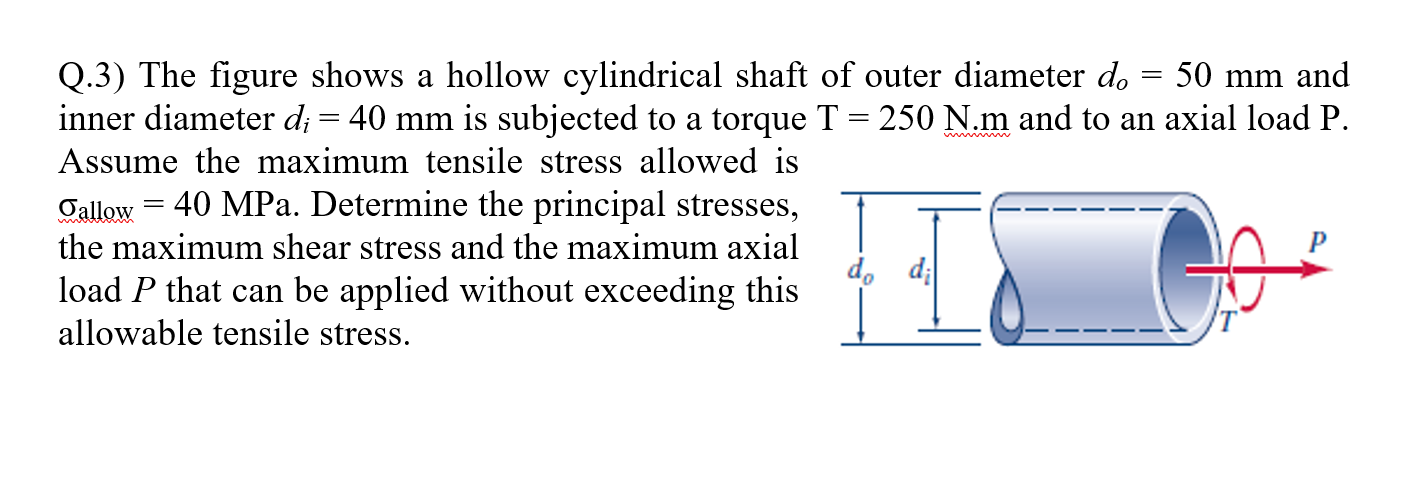

Q.3) The figure shows a hollow cylindrical shaft of outer diameter do = 50 mm and inner diameter di = 40 mm is subjected to a torque T = 250 N.m and to an axial load P. Assume the maximum tensile stress allowed is Gallow = 40 MPa. Determine the principal stresses, T the maximum shear stress and the maximum axial load P that can be applied without exceeding this allowable tensile stress. do di HIS
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
