Lab No7 Control Of Plain Gage Page 1 Task Measure The Working Gauge Tube For Inspection Of Hole O71 E8 And Conclude 1 (41.21 KiB) Viewed 15 times

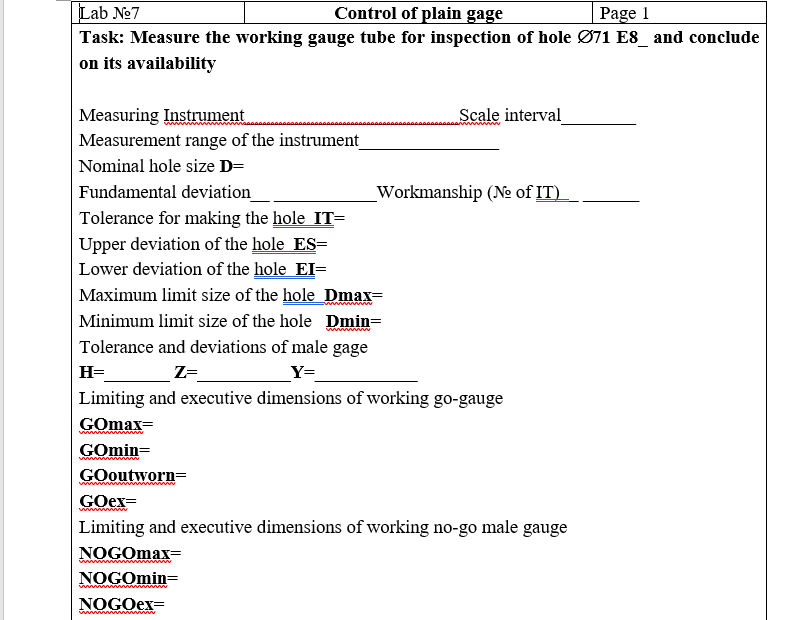

Lab No7 Control of plain gage Page 1 - Task: Measure the working gauge tube for inspection of hole Ø71 E8_ and conclude on its availability Measuring Instrument Scale interval Measurement range of the instrument_ Nominal hole size D= Fundamental deviation_ Workmanship (№o of IT) Tolerance for making the hole IT= Upper deviation of the hole ES= Lower deviation of the hole EI= Maximum limit size of the hole Dmax= Minimum limit size of the hole Dmin= Tolerance and deviations of male gage H= Z= Y= Limiting and executive dimensions of working go-gauge GOmax= wwwwwww GOmin= GOoutworn= GOex= www Limiting and executive dimensions of working no-go male gauge NOGOmax= NOGOmin= M NOGOex=
Lab №o7 Control of plain gage Executive size gauge Cylindrical plugs Handle NO GO GO Schematic layout of gauge tolerance zone Page 2
