Problem 8: For the kinematic diagram shown in the figure at the instant when, 0=60°, the angular velocity of link 2 is 3

[answerhappygod]

Problem 8 For The Kinematic Diagram Shown In The Figure At The Instant When 0 60 The Angular Velocity Of Link 2 Is 3 1 (48.29 KiB) Viewed 25 times

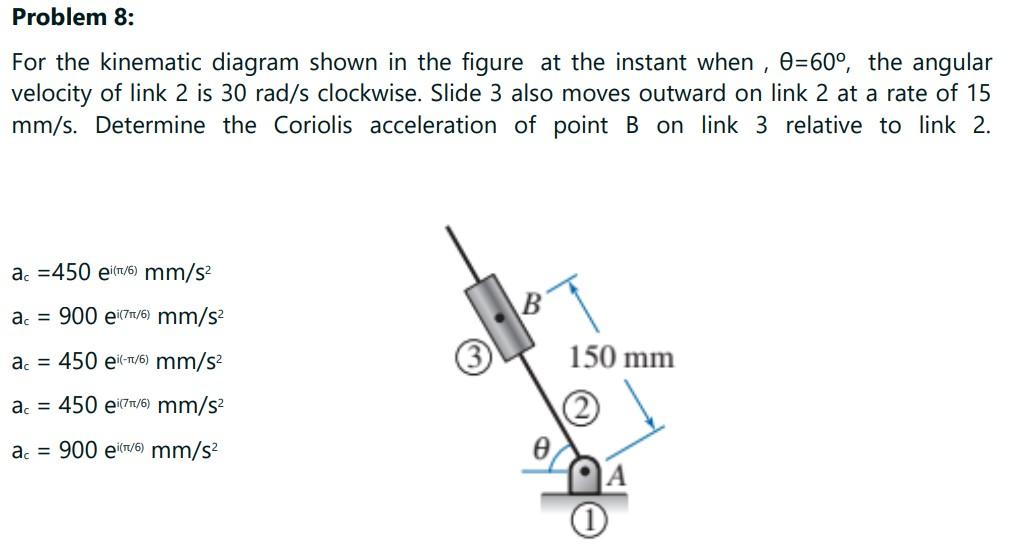

Problem 8: For the kinematic diagram shown in the figure at the instant when, 0=60°, the angular velocity of link 2 is 30 rad/s clockwise. Slide 3 also moves outward on link 2 at a rate of 15 mm/s. Determine the Coriolis acceleration of point B on link 3 relative to link 2. ac 450 ei(/6) mm/s² ac = 900 ei(7/6) mm/s² a = 450 ei(π/6) mm/s² 150 mm a = 450 ei(7/6) mm/s² ac = 900 e/6) mm/s²
