Problem 7: A gear train is shown in the figure. The gears have the following properties: T₁ = 16 teeth, T₂=32 teeth, T3

Post by answerhappygod »

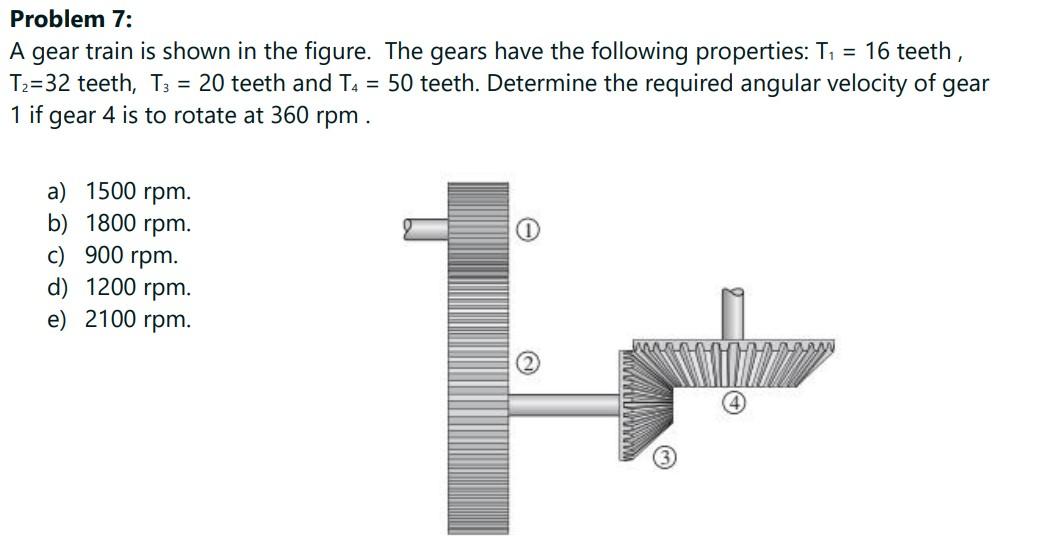

Problem 7 A Gear Train Is Shown In The Figure The Gears Have The Following Properties T 16 Teeth T 32 Teeth T3 1
Problem 7 A Gear Train Is Shown In The Figure The Gears Have The Following Properties T 16 Teeth T 32 Teeth T3 1 (49.12 KiB) Viewed 39 times
Problem 7: A gear train is shown in the figure. The gears have the following properties: T₁ = 16 teeth, T₂=32 teeth, T3 = 20 teeth and T4 = 50 teeth. Determine the required angular velocity of gear 1 if gear 4 is to rotate at 360 rpm. a) 1500 rpm. b) 1800 rpm. c) 900 rpm. d) 1200 rpm. e) 2100 rpm.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
