The hydraulic cylinder produces a limited horizontal motion of point A. When 0 = 45°, VA = 2 m/s in the directions shown

Post by answerhappygod »

The Hydraulic Cylinder Produces A Limited Horizontal Motion Of Point A When 0 45 Va 2 M S In The Directions Shown 1
The Hydraulic Cylinder Produces A Limited Horizontal Motion Of Point A When 0 45 Va 2 M S In The Directions Shown 1 (182 KiB) Viewed 29 times

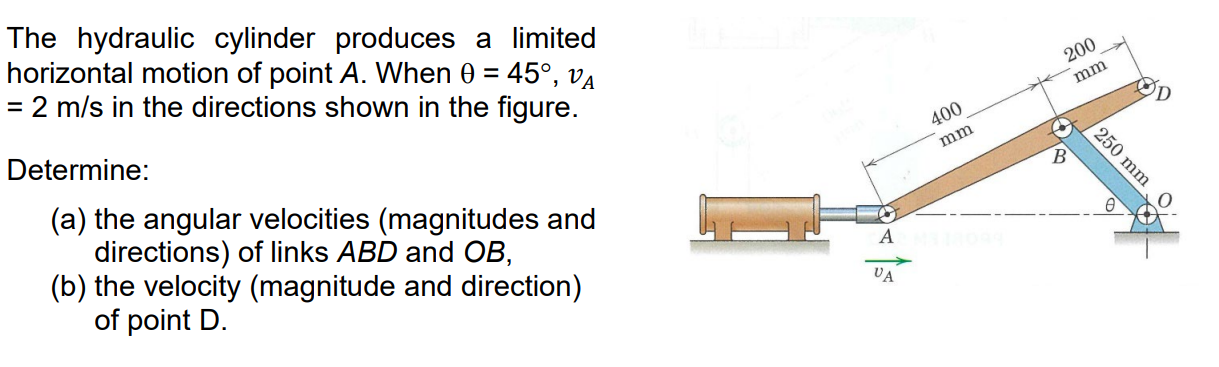

The hydraulic cylinder produces a limited horizontal motion of point A. When 0 = 45°, VA = 2 m/s in the directions shown in the figure. Determine: (a) the angular velocities (magnitudes and directions) of links ABD and OB, (b) the velocity (magnitude and direction) of point D. 400 mm A M318099 VA 200 mm B 250 mm
