Q-3 The tooth numbers for the gear train illustrated are N₂-20-T, N₁ - 16-T, N4-30-T, No - 36-T, and N₁-46-T. Gear 7 is

[answerhappygod]

Q 3 The Tooth Numbers For The Gear Train Illustrated Are N 20 T N 16 T N4 30 T No 36 T And N 46 T Gear 7 Is 1 (46.46 KiB) Viewed 34 times

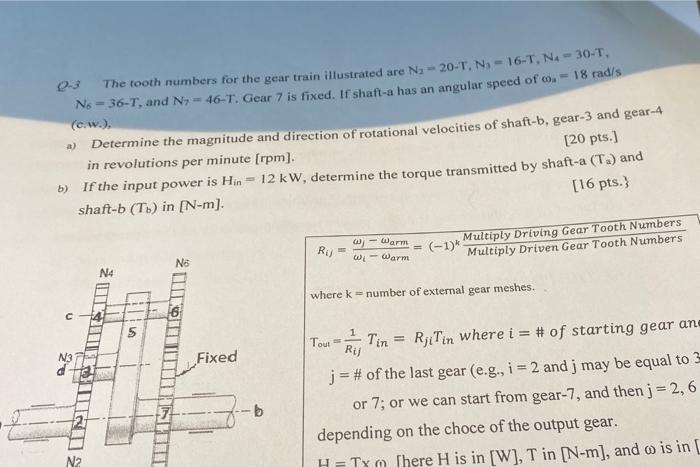

Q-3 The tooth numbers for the gear train illustrated are N₂-20-T, N₁ - 16-T, N4-30-T, No - 36-T, and N₁-46-T. Gear 7 is fixed. If shaft-a has an angular speed of 18 rad/s (c.w.), Determine the magnitude and direction of rotational velocities of shaft-b, gear-3 and gear-4 [20 pts.] in revolutions per minute [rpm]. b) If the input power is Hin = 12 kW, determine the torque transmitted by shaft-a (Ta) and shaft-b (Tb) in [N-m]. [16 pts.} Ru Wi-Warm = W₁ - Warm (-1) k Multiply Driving Gear Tooth Numbers Multiply Driven Gear Tooth Numbers where k = number of external gear meshes. 6 1 Tout = Tin = RjiTin where i = # of starting gear an Rij j = # of the last gear (e.g., i = 2 and j may be equal to 3 or 7; or we can start from gear-7, and then j = 2,6 depending on the choce of the output gear. HTxm [here H is in [W], T in [N-m], and wo is in [ N3 TC m लगाता N2 S THSHU Fixed
