1. A cast-iron link shown below is required to transmit a steady tensile load of 45 kN. Find the tensile stress induced

Post by answerhappygod »

1 A Cast Iron Link Shown Below Is Required To Transmit A Steady Tensile Load Of 45 Kn Find The Tensile Stress Induced 1
1 A Cast Iron Link Shown Below Is Required To Transmit A Steady Tensile Load Of 45 Kn Find The Tensile Stress Induced 1 (69.14 KiB) Viewed 26 times
ASAP THank you

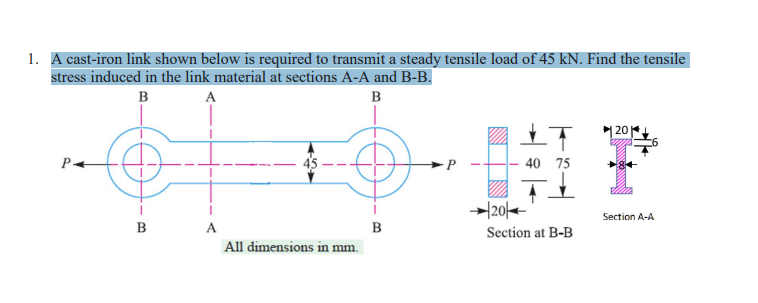

1. A cast-iron link shown below is required to transmit a steady tensile load of 45 kN. Find the tensile stress induced in the link material at sections A-A and B-B. B A B 20 P 40 75 Section A-A A B Section at B-B All dimensions in mm. B 20
