2. Given an op-amp application as shown in Figure 2. i) State the type of amplifier configuration used in Figure 2. ii)
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. Given an op-amp application as shown in Figure 2. i) State the type of amplifier configuration used in Figure 2. ii)

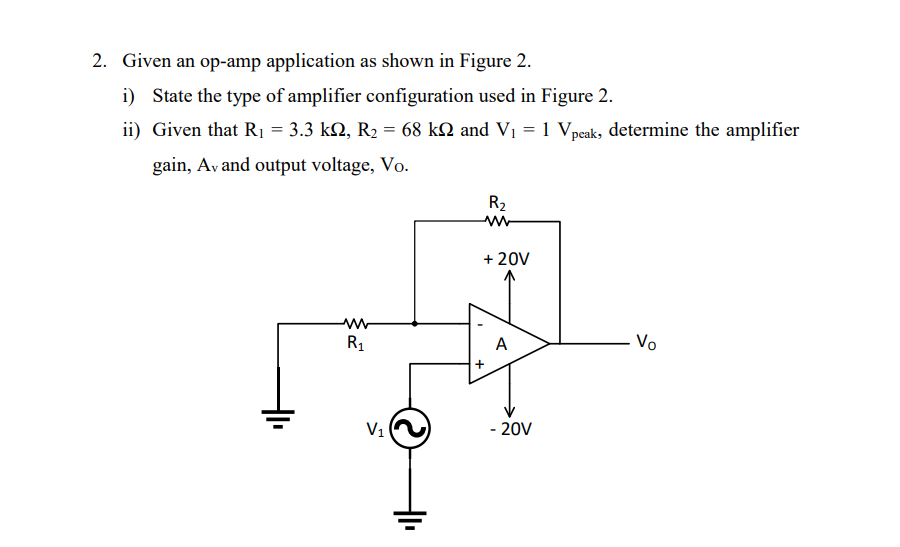

2. Given an op-amp application as shown in Figure 2. i) State the type of amplifier configuration used in Figure 2. ii) Given that R₁ = 3.3 km, R₂ = 68 kN and V₁ = 1 Vpeak, determine the amplifier gain, Ay and output voltage, Vo. R₂ ww + 20V Vo R₁ A V₁ + - 20V
