(c) Assume firing angle a as given by the last two digits of your URN (e.g. for URN 1234567, a = 67°). Sketch and fully

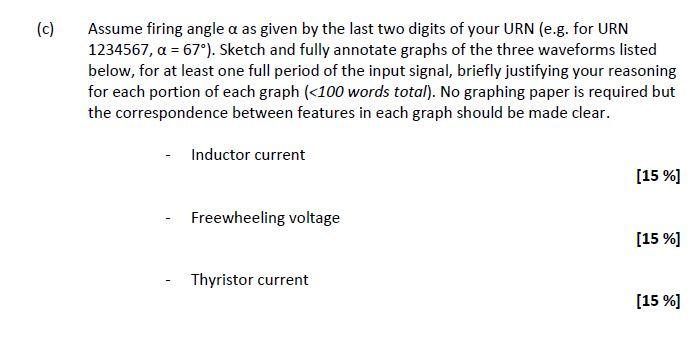

(c) Assume firing angle a as given by the last two digits of your URN (e.g. for URN 1234567, a = 67°). Sketch and fully annotate graphs of the three waveforms listed below, for at least one full period of the input signal, briefly justifying your reasoning for each portion of each graph (<100 words total). No graphing paper is required but the correspondence between features in each graph should be made clear. Inductor current [15 %] Freewheeling voltage [15 %] Thyristor current [15 %]
