The program should implement the system as in the figure above .
The following notes can be helpful :
1- Generate 1 a packet of 100 random bits to simulate the message
2- Apply Polar NRZ to the packet ( i.e. , convert the bits to +/- 1 ) . Use 4 samples per each bit .
- Develop A Matlab Or Simulink Program That Simulates A Polar Nrz System The Program Should Implement The System As In T 1 (34.02 KiB) Viewed 36 times
4- Implement the integrate and dump at the receiver for each bit • Add each 4 samples for each bit • Decide if the bits was 0 or 1
5- Calculate the number of bits in error ( compare the transmitted and received bits )
6- Repeat from step 1 to 5 , and keep accumulating the number of bits in error and the number of transmitted bits
7- Find the BER

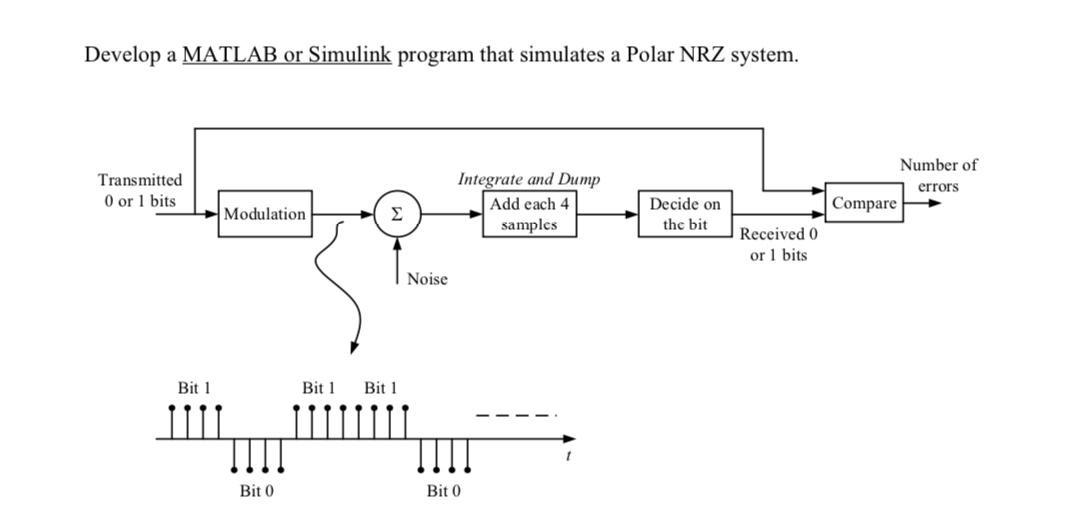

Develop a MATLAB or Simulink program that simulates a Polar NRZ system. Transmitted 0 or 1 bits Integrate and Dump Add each 4 samples Decide on the bit دور ہی سے Modulation. Bit 1 1111 ȚII! Bit 0 Bit 1 Σ Bit 1 Noise T!!! Bit 0 Received 0 or 1 bits Number of errors Compare
