- 3 For The Network Shown Below Construct I A Directed Graph Ii The Incidence Matrix Iii A Tie Set Matrix Iv Cut Set 1 (80.71 KiB) Viewed 43 times
3. For the network shown below Construct: i. A Directed Graph ii. The Incidence Matrix iii. A Tie-Set Matrix iv. Cut-Set
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. For the network shown below Construct: i. A Directed Graph ii. The Incidence Matrix iii. A Tie-Set Matrix iv. Cut-Set

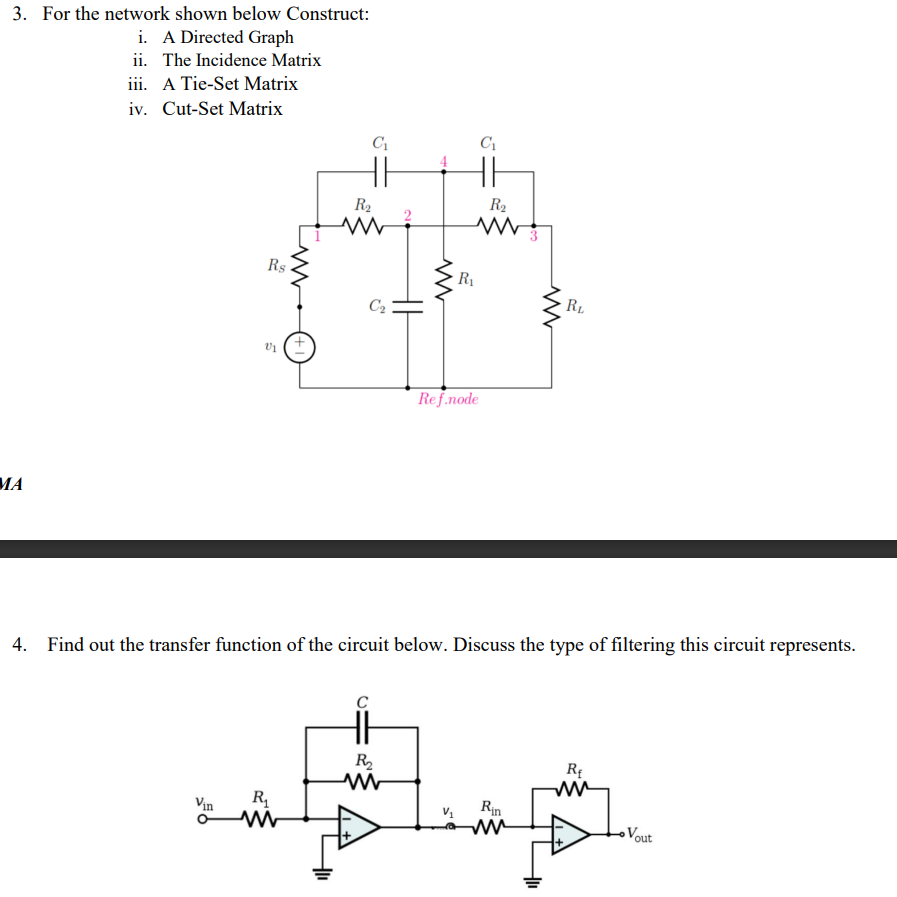

3. For the network shown below Construct: i. A Directed Graph ii. The Incidence Matrix iii. A Tie-Set Matrix iv. Cut-Set Matrix Rs C₁ HH R₂ www ww R₁ C₁ R₂ www RL U1 Ref.node MA 4. Find out the transfer function of the circuit below. Discuss the type of filtering this circuit represents. C R₂ RE Rin Vin R₁ ww ww Vout
