Please calculate Zeq. Use w= 2π X 100 MHz. R3 7Ω C5 318.3 pF H lell L3 11.14 nH C4 Zeq 227.4 pF ww R4 14 Q2 ww R6 7Ω ell

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Please calculate Zeq. Use w= 2π X 100 MHz. R3 7Ω C5 318.3 pF H lell L3 11.14 nH C4 Zeq 227.4 pF ww R4 14 Q2 ww R6 7Ω ell

Post by answerhappygod »

1
1 (112.48 KiB) Viewed 18 times

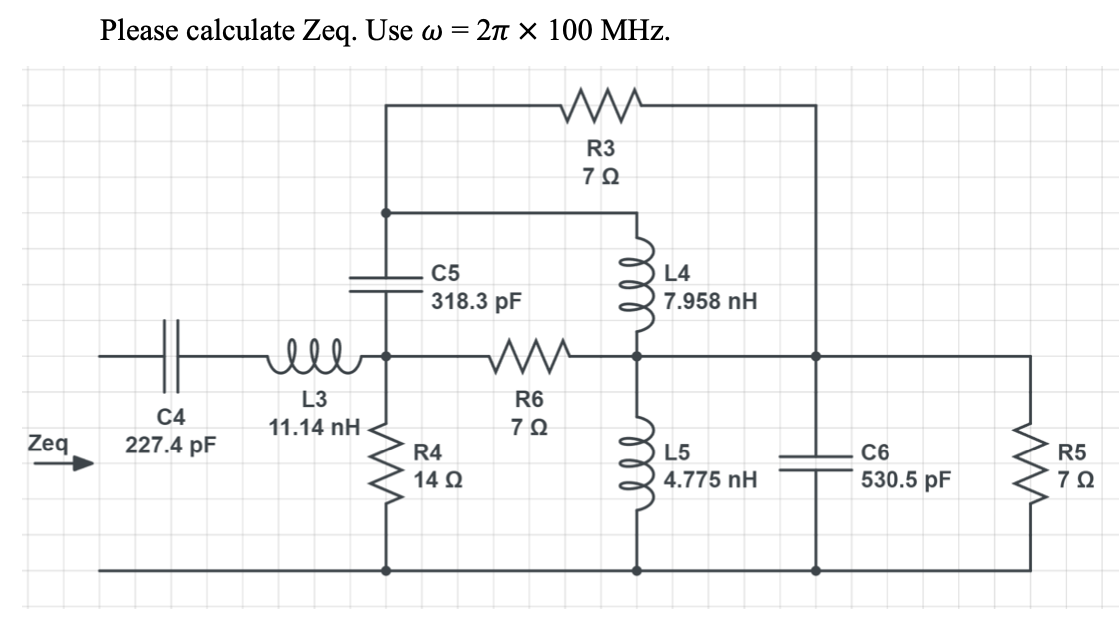

Please calculate Zeq. Use w= 2π X 100 MHz. R3 7Ω C5 318.3 pF H lell L3 11.14 nH C4 Zeq 227.4 pF ww R4 14 Q2 ww R6 7Ω ell L4 7.958 nH L5 4.775 nH C6 530.5 pF ww R5 7Ω
