A simple RC oscillator has a feedback resistance of 20 ohms. The feedback capacitance of the same oscillator is found to

Post by answerhappygod »

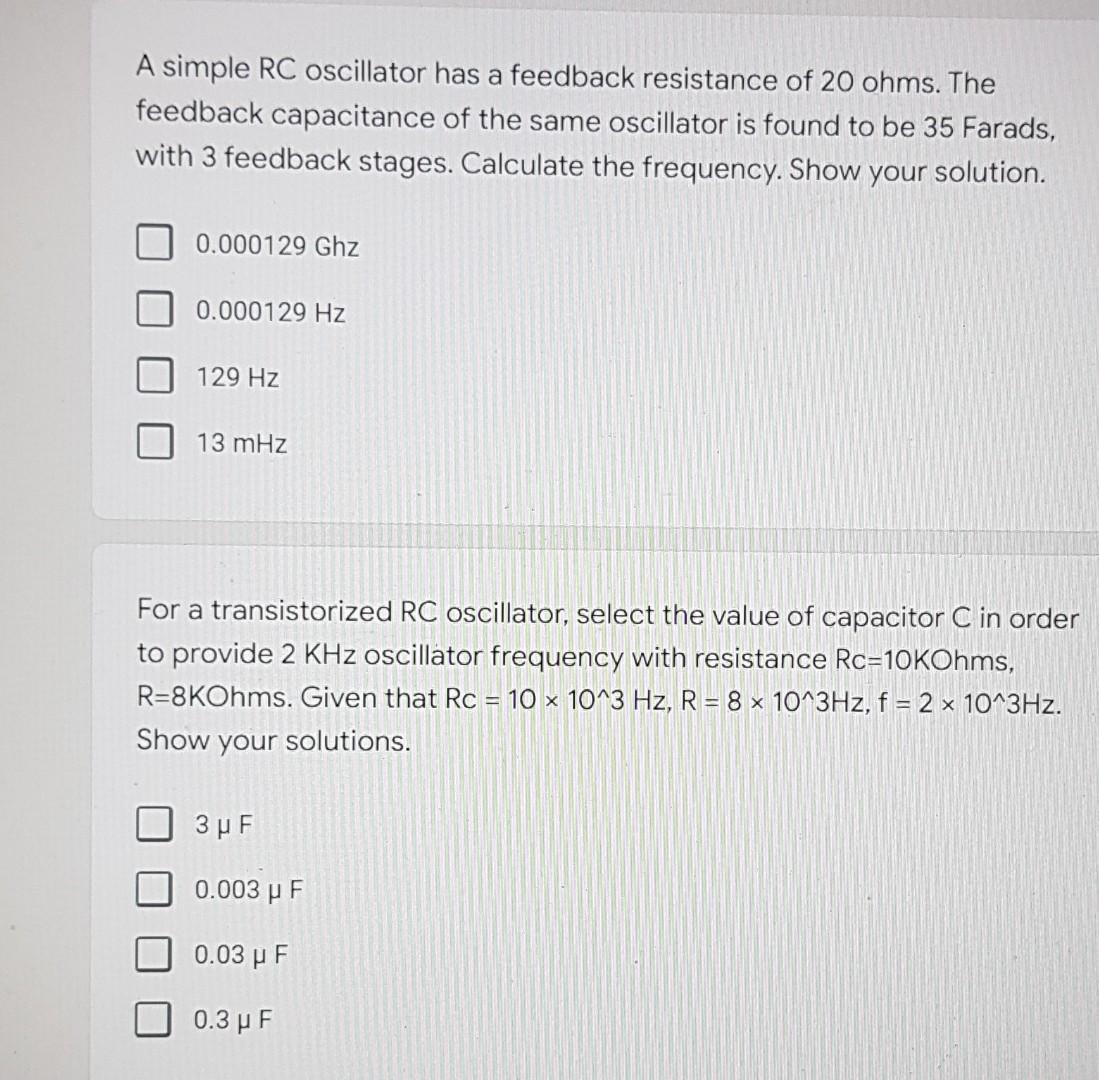

A Simple Rc Oscillator Has A Feedback Resistance Of 20 Ohms The Feedback Capacitance Of The Same Oscillator Is Found To 1
A Simple Rc Oscillator Has A Feedback Resistance Of 20 Ohms The Feedback Capacitance Of The Same Oscillator Is Found To 1 (154.89 KiB) Viewed 30 times
asap
A simple RC oscillator has a feedback resistance of 20 ohms. The feedback capacitance of the same oscillator is found to be 35 Farads, with 3 feedback stages. Calculate the frequency. Show your solution. 0.000129 Ghz 0.000129 Hz 129 Hz 13 mHz For a transistorized RC oscillator, select the value of capacitor C in order to provide 2 KHz oscillator frequency with resistance Rc=10kOhms, R=8KOhms. Given that Rc = 10 x 10^3 Hz, R = 8 x 10^3Hz, f = 2 x 10^3Hz. Show your solutions. 3 με 0.003 μ F 0.03 μ F 0.3 μF
