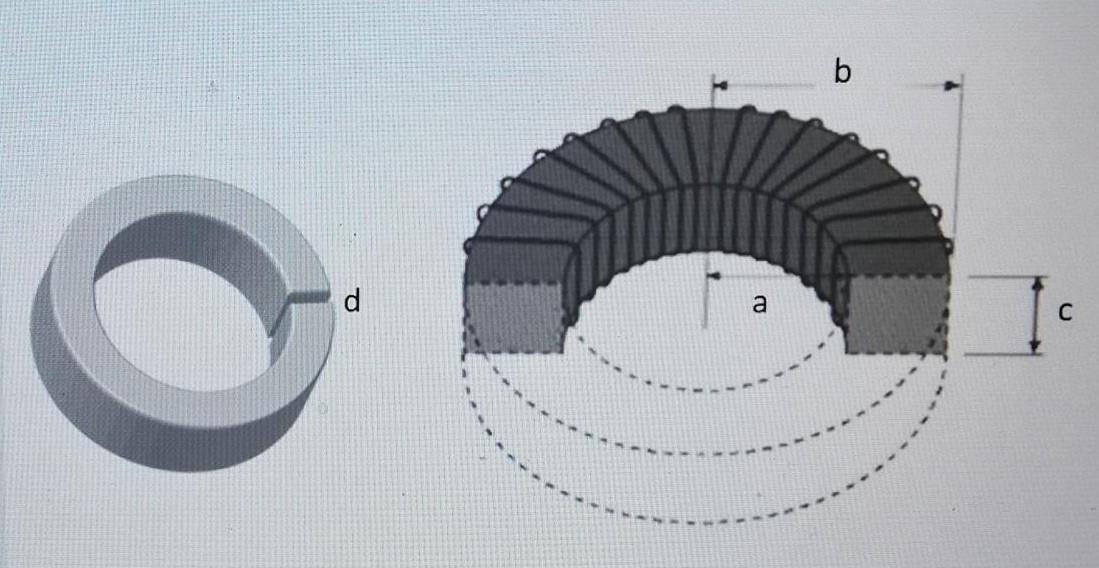

N = 140 turns of smooth winding was wound on a toroid with a
relative magnetic permeability of ut = 2000 and a piece of d = 0.1
cm missing.
N 140 Turns Of Smooth Winding Was Wound On A Toroid With A Relative Magnetic Permeability Of Ut 2000 And A Piece Of 1 (77.8 KiB) Viewed 23 times
If a = 1.5cm, b = 4cm, c = 2cm, how many uH is the inductance
value of this toroid when the leaks are neglected? Use the outer
radius for the toroid length, u0 = 4pi
10-7 H/m.
a b C
