using bipolar PWM voltage switching at 10kHz with vcontrol =
0.75Vtri. If Vd = 50V and io = 2A:

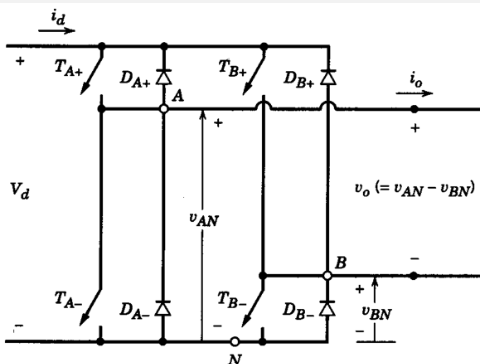

- A Full Bridge Dc Dc Converter Supplies A Pure Resistive Load Using Bipolar Pwm Voltage Switching At 10khz With Vcontrol 1 (27.81 KiB) Viewed 22 times
(t)). Identify the components as leader (TA +, TA-, DA +, DA-, TB
+, TB-, DB + and DB-) for different time intervals. including
numerical values on both axes.
b. Calculate the DC output voltage (Vo), the DC input current (Id)
and the maximum load current (Io, max).
c. Using Fourier analysis, calculate the amplitude of the switching
frequency harmonic components of the output voltage uo.
Va TA+ TA- DA+ DA- A VAN TB+ TB- N DB+ 4 DB- B io vo (= VAN-UBN) UBN 1
