A flyback converter operates in incomplete demagnetization mode with a duty cycle of 40% and is supplied with a direct v

Post by answerhappygod »

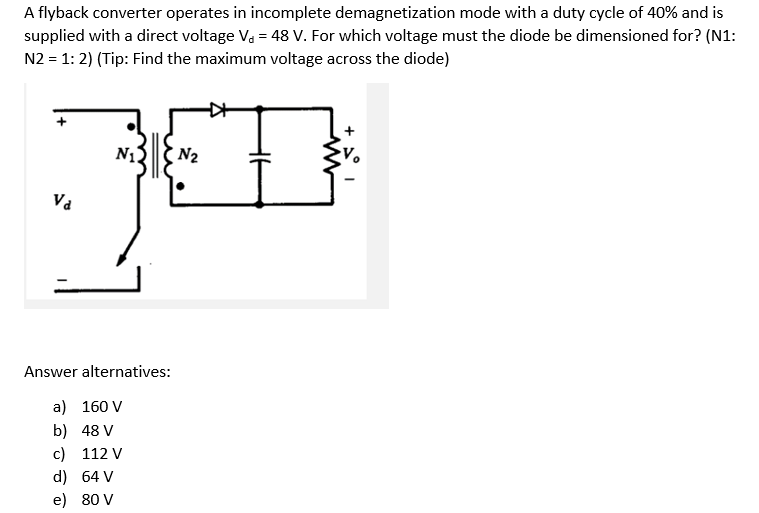

A Flyback Converter Operates In Incomplete Demagnetization Mode With A Duty Cycle Of 40 And Is Supplied With A Direct V 1
A Flyback Converter Operates In Incomplete Demagnetization Mode With A Duty Cycle Of 40 And Is Supplied With A Direct V 1 (34.67 KiB) Viewed 27 times
A flyback converter operates in incomplete demagnetization mode with a duty cycle of 40% and is supplied with a direct voltage V₁ = 48 V. For which voltage must the diode be dimensioned for? (N1: N2 = 1: 2) (Tip: Find the maximum voltage across the diode) Vo N₁. N₂ 30 Va Answer alternatives: a) 160 V b) 48 V c) 112 V d) 64 V e) 80 V
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
