Table 2: Band-pass circuit parameters and circuit components R1 = 75 km; C = 10 nF; R4 = 2 ks Note: The circuit is to be

[answerhappygod]

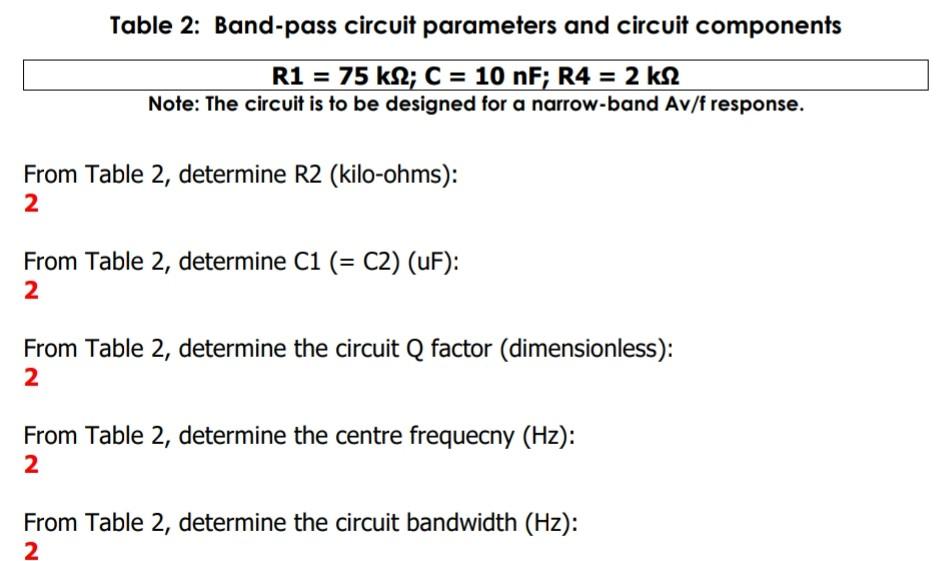

Table 2 Band Pass Circuit Parameters And Circuit Components R1 75 Km C 10 Nf R4 2 Ks Note The Circuit Is To Be 1 (48.9 KiB) Viewed 34 times

Table 2: Band-pass circuit parameters and circuit components R1 = 75 km; C = 10 nF; R4 = 2 ks Note: The circuit is to be designed for a narrow-band Av/f response. From Table 2, determine R2 (kilo-ohms): 2 From Table 2, determine C1 (= C2) (UF): 2 From Table 2, determine the circuit Q factor (dimensionless): 2 From Table 2, determine the centre frequecny (Hz): 2 From Table 2, determine the circuit bandwidth (Hz): 2
