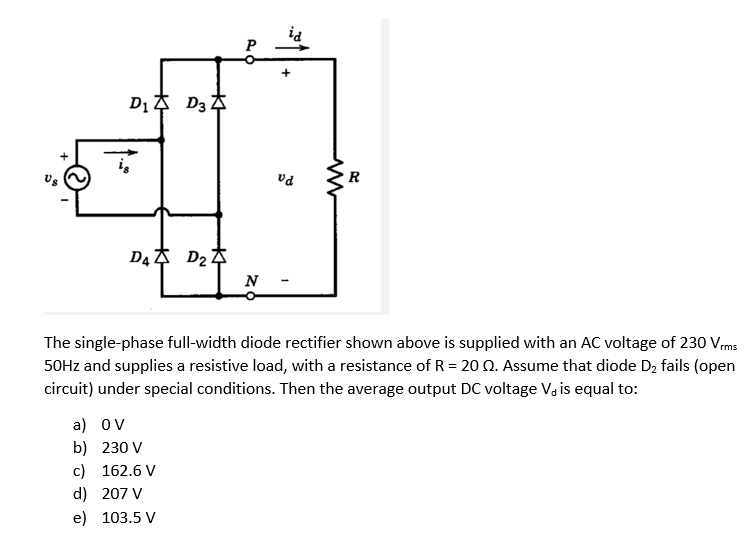

B D₁ D3 R D₁ D₂ N The single-phase full-width diode rectifier shown above is supplied with an AC voltage of 230 Vrms 50Hz and supplies a resistive load, with a resistance of R = 20 02. Assume that diode D₂ fails (open circuit) under special conditions. Then the average output DC voltage V, is equal to: a) OV b) 230 V c) 162.6 V d) 207 V e) 103.5 V vd
