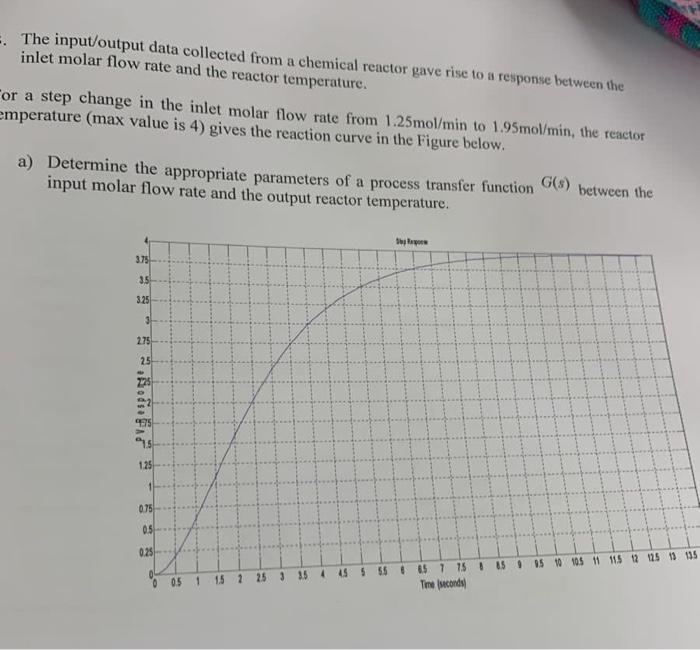

=. The input/output data collected from a chemical reactor gave rise to a response between the inlet molar flow rate and the reactor temperature. or a step change in the inlet molar flow rate from 1.25mol/min to 1.95mol/min, the reactor emperature (max value is 4) gives the reaction curve in the Figure below. G(s) a) Determine the appropriate parameters of a process transfer function input molar flow rate and the output reactor temperature. between the by Repo 3.75 4 4.5 5 5.5 6 6.5 7 7.5 8 8.5 9 9.5 10 10.5 11 11.5 12 12.5 13 13.5 Time (seconds) 3.5 3.25 3 2.75 2.5 1.5 1.25 0.75 0.5 0.25 04 0 0.5 1 1.5 2 2.5 3 3.5
