1. The segmented bar shown has forces that are assumed to be applied at the locations of the tails of the arrows. Determ

[answerhappygod]

1 The Segmented Bar Shown Has Forces That Are Assumed To Be Applied At The Locations Of The Tails Of The Arrows Determ 1 (18.84 KiB) Viewed 13 times

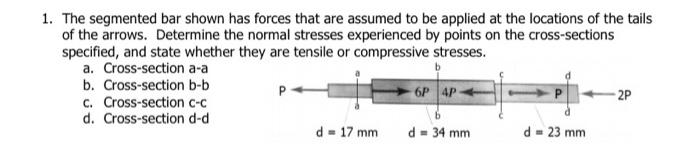

1. The segmented bar shown has forces that are assumed to be applied at the locations of the tails of the arrows. Determine the normal stresses experienced by points on the cross-sections specified, and state whether they are tensile or compressive stresses. a. Cross-section a-a b b. Cross-section b-b P 6P 4P- -2P c. Cross-section c-c d. Cross-section d-d d = 17 mm d = 34 mm d = 23 mm
