1. a. Define reinforced concrete b. Why is the steel reinforcement incorporated into reinforced concrete? A B C Label pa

[answerhappygod]

1 A Define Reinforced Concrete B Why Is The Steel Reinforcement Incorporated Into Reinforced Concrete A B C Label Pa 1 (32.09 KiB) Viewed 22 times

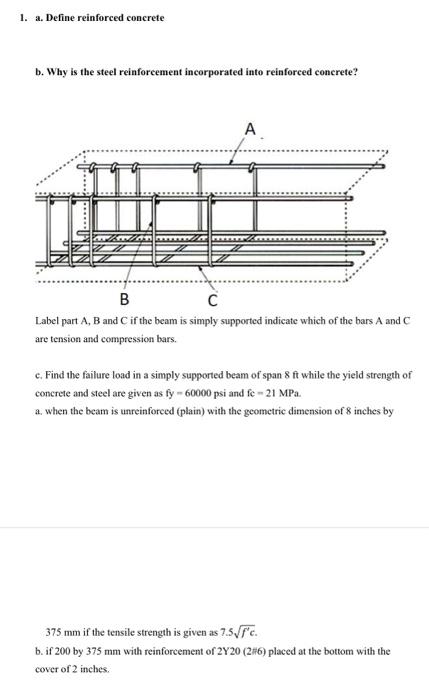

1. a. Define reinforced concrete b. Why is the steel reinforcement incorporated into reinforced concrete? A B C Label part A, B and C if the beam is simply supported indicate which of the bars A and C are tension and compression bars. c. Find the failure load in a simply supported beam of span 8 ft while the yield strength of concrete and steel are given as fy - 60000 psi and fe - 21 MPa. a. when the beam is unreinforced (plain) with the geometric dimension of 8 inches by 375 mm if the tensile strength is given as 7.5√ √fc. b. if 200 by 375 mm with reinforcement of 2Y20 (2#6) placed at the bottom with the cover of 2 inches.
