Task 1: Draw the cross-section of an arterial road having the following dimensions and features explained below: 1. Six

Post by answerhappygod »

Task 1 Draw The Cross Section Of An Arterial Road Having The Following Dimensions And Features Explained Below 1 Six 1
Task 1 Draw The Cross Section Of An Arterial Road Having The Following Dimensions And Features Explained Below 1 Six 1 (31.91 KiB) Viewed 31 times

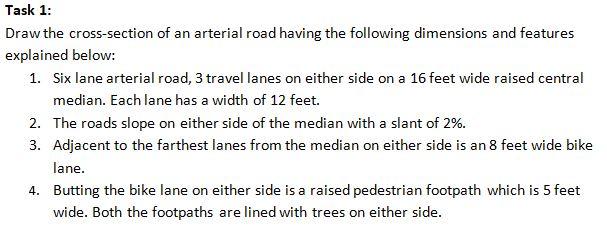

Task 1: Draw the cross-section of an arterial road having the following dimensions and features explained below: 1. Six lane arterial road, 3 travel lanes on either side on a 16 feet wide raised central median. Each lane has a width of 12 feet. 2. The roads slope on either side of the median with a slant of 2%. 3. Adjacent to the farthest lanes from the median on either side is an 8 feet wide bike lane. 4. Butting the bike lane on either side is a raised pedestrian footpath which is 5 feet wide. Both the footpaths are lined with trees on either side.
