Student Name Structure Spring 21-22 Student 2) A solid rod with the given dimension shown in Fig. Axial loads are applie

[answerhappygod]

Student Name Structure Spring 21 22 Student 2 A Solid Rod With The Given Dimension Shown In Fig Axial Loads Are Applie 1 (25.07 KiB) Viewed 15 times

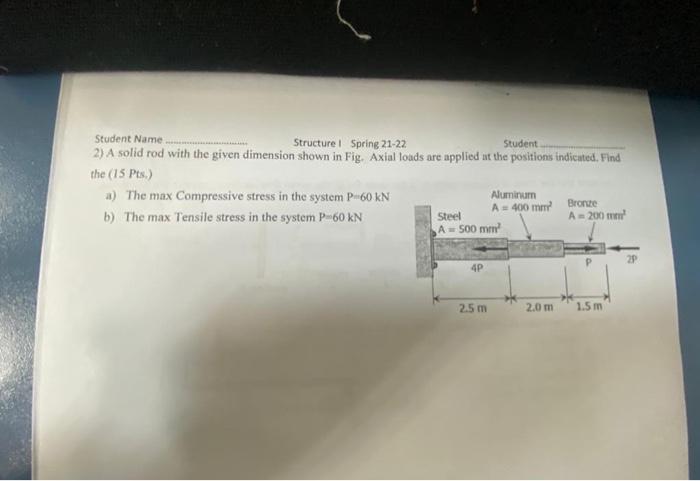

Student Name Structure Spring 21-22 Student 2) A solid rod with the given dimension shown in Fig. Axial loads are applied at the positions indicated. Find the (15 Pts.) a) The max Compressive stress in the system P-60 kN Aluminum A = 400 mm b) The max Tensile stress in the system P-60 kN Bronze A = 200 mm² Steel A=500 mm² 4P 2.5 m 1.5 m 2.0 m 2P
