Question 1 [22 Marks] For the cross-section shown in Figure Q1, and based on an origin that is located at the bottom mos

Post by answerhappygod »

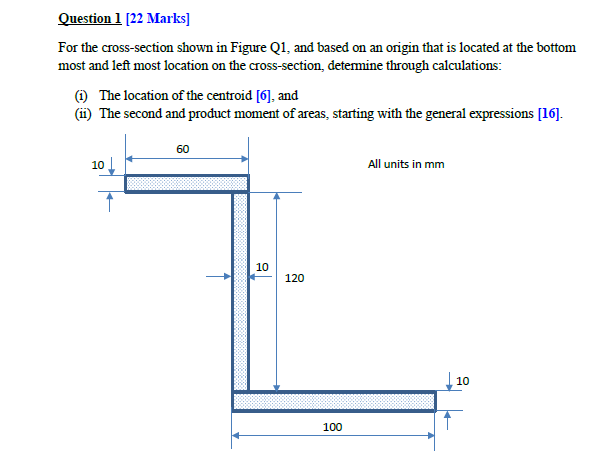

Question 1 22 Marks For The Cross Section Shown In Figure Q1 And Based On An Origin That Is Located At The Bottom Mos 1
Question 1 22 Marks For The Cross Section Shown In Figure Q1 And Based On An Origin That Is Located At The Bottom Mos 1 (23.58 KiB) Viewed 14 times
Question 1 [22 Marks] For the cross-section shown in Figure Q1, and based on an origin that is located at the bottom most and left most location on the cross-section, determine through calculations: (1) The location of the centroid [6], and (ii) The second and product moment of areas, starting with the general expressions [16]. 60 10 All units in mm 10 120 100 10
