Q4 A rectangular gate is to open just as the water level reaches a height of 4.0 m from bottom of the gate as shown in f

Post by answerhappygod »

Q4 A Rectangular Gate Is To Open Just As The Water Level Reaches A Height Of 4 0 M From Bottom Of The Gate As Shown In F 1
Q4 A Rectangular Gate Is To Open Just As The Water Level Reaches A Height Of 4 0 M From Bottom Of The Gate As Shown In F 1 (47.21 KiB) Viewed 19 times
Department:Civil Engineering
Subject:fluid mechanics-I

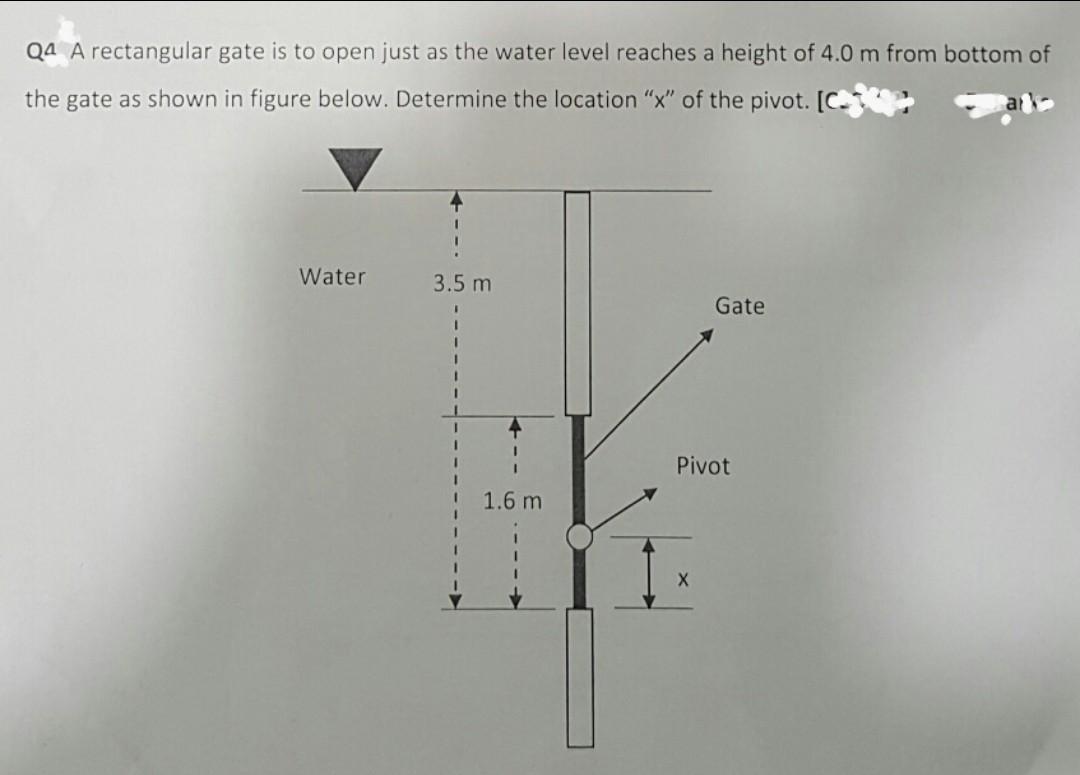

Q4 A rectangular gate is to open just as the water level reaches a height of 4.0 m from bottom of the gate as shown in figure below. Determine the location "x" of the pivot. [C Water 3.5 m Gate 1.6 m 1 Pivot
