Analyse The Frame In Figure 3 Using Moment Distribution And Calculate The Support Reactions Caused By The Applied Loads 1 (75.9 KiB) Viewed 15 times
Analysis of frame by moment distribution method to obtain axial force, shear force and bending moment diagrams.

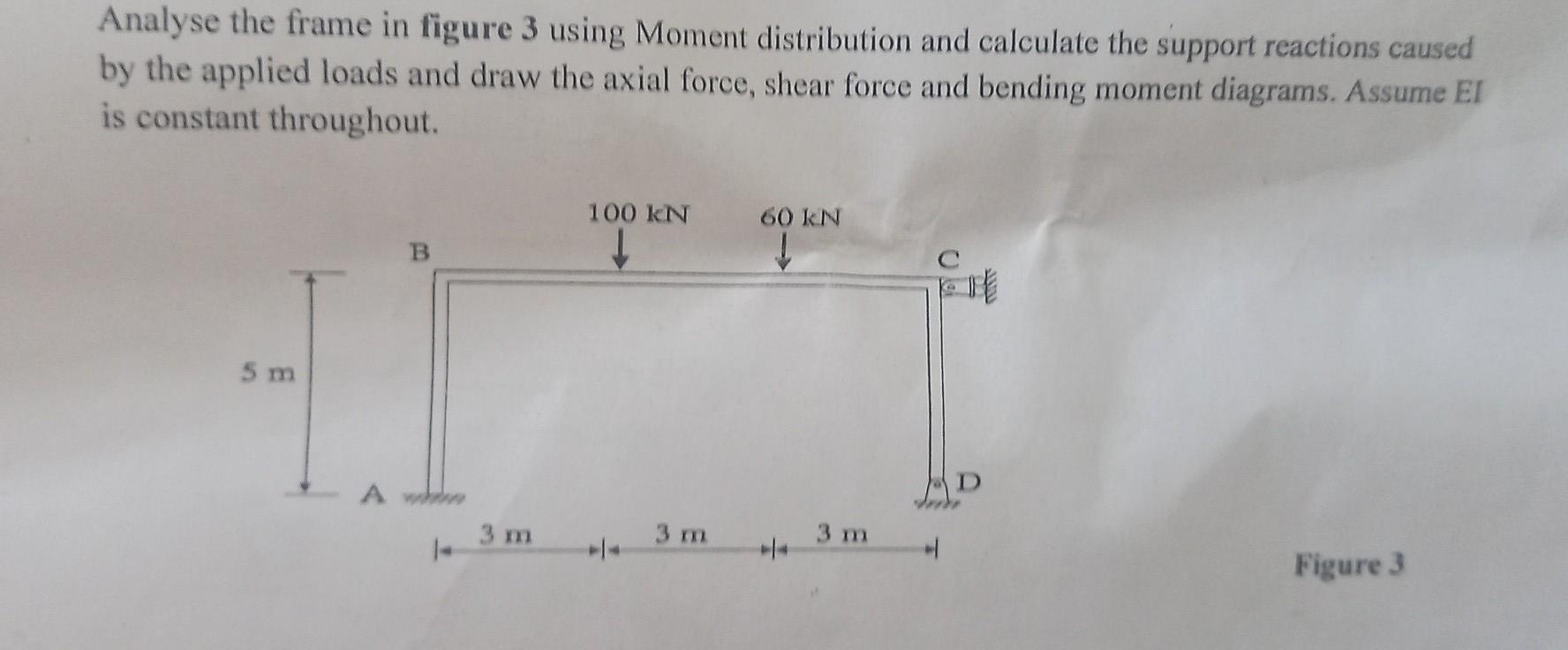

Analyse the frame in figure 3 using Moment distribution and calculate the support reactions caused by the applied loads and draw the axial force, shear force and bending moment diagrams. Assume El is constant throughout. 100 KN 60 kN B FHE 5 m Figure 3 3 m 3 m
