[60 pts] Q.1. (a-) Compute the final moments for a given beam. Use Moment distribution method. Support A is hinged, B an

Post by answerhappygod »

60 Pts Q 1 A Compute The Final Moments For A Given Beam Use Moment Distribution Method Support A Is Hinged B An 1
60 Pts Q 1 A Compute The Final Moments For A Given Beam Use Moment Distribution Method Support A Is Hinged B An 1 (16.93 KiB) Viewed 30 times

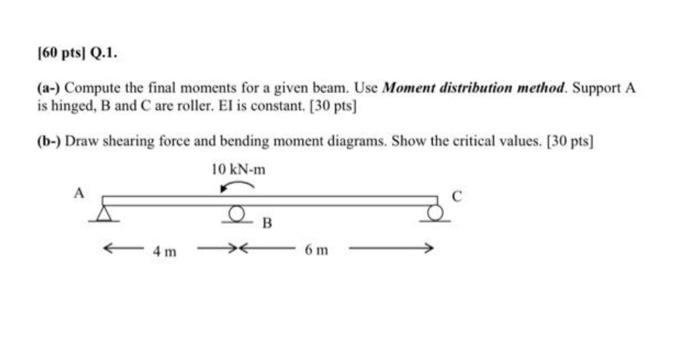

[60 pts] Q.1. (a-) Compute the final moments for a given beam. Use Moment distribution method. Support A is hinged, B and C are roller. El is constant. [30 pts] (b-) Draw shearing force and bending moment diagrams. Show the critical values. [30 pts] 10 kN-m O 4m * 6m B 8°
