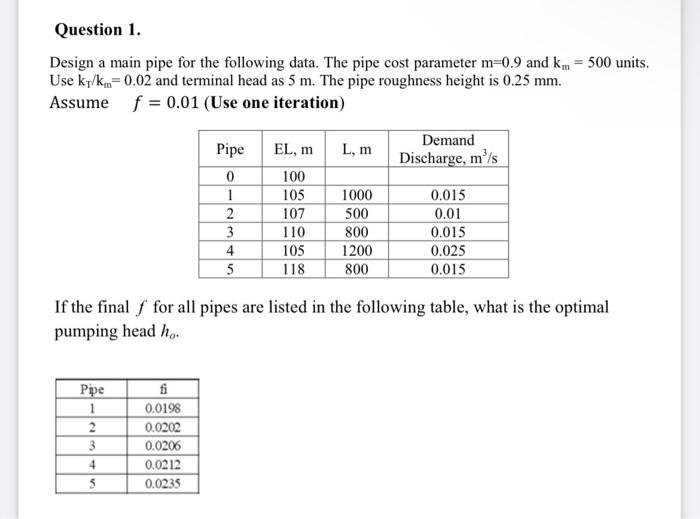

Question 1. Design a main pipe for the following data. The pipe cost parameter m=0.9 and km = 500 units. Use kr/km 0.02

[answerhappygod]

Question 1 Design A Main Pipe For The Following Data The Pipe Cost Parameter M 0 9 And Km 500 Units Use Kr Km 0 02 1 (36.44 KiB) Viewed 13 times

Question 1. Design a main pipe for the following data. The pipe cost parameter m=0.9 and km = 500 units. Use kr/km 0.02 and terminal head as 5 m. The pipe roughness height is 0.25 mm. Assume f = 0.01 (Use one iteration) Pipe EL, m L, m Demand Discharge, m³/s 0 100 1 105 1000 0.015 2 107 500 0.01 3 110 800 0.015 4 105 1200 0.025 5 118 800 0.015 If the final f for all pipes are listed in the following table, what is the optimal pumping head ho. Pipe fi 1 0.0198 2 0.0202 3 0.0206 4 0.0212 5 0.0235
