The Cantilever Beam Has A Span Length Of 6 M And Ei 400 Mnm A For The Cantilever Beam Derive The Equation Of The E 1 (37.24 KiB) Viewed 22 times
use superposition method

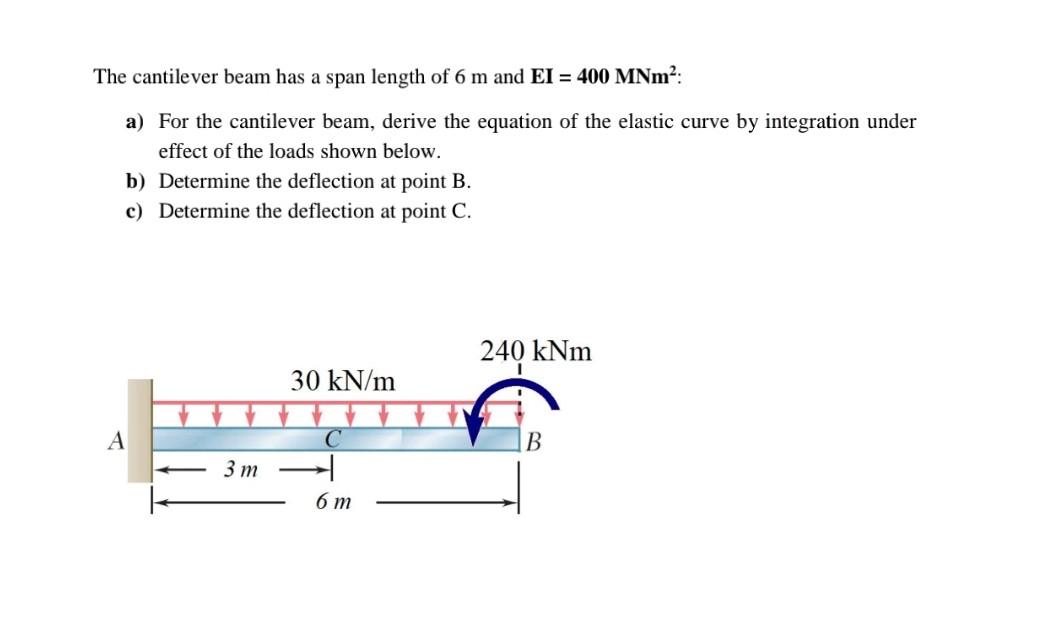

The cantilever beam has a span length of 6 m and EI = 400 MNm²: a) For the cantilever beam, derive the equation of the elastic curve by integration under effect of the loads shown below. b) Determine the deflection at point B. c) Determine the deflection at point C. 240 kNm 30 kN/m A B 6m 3m
