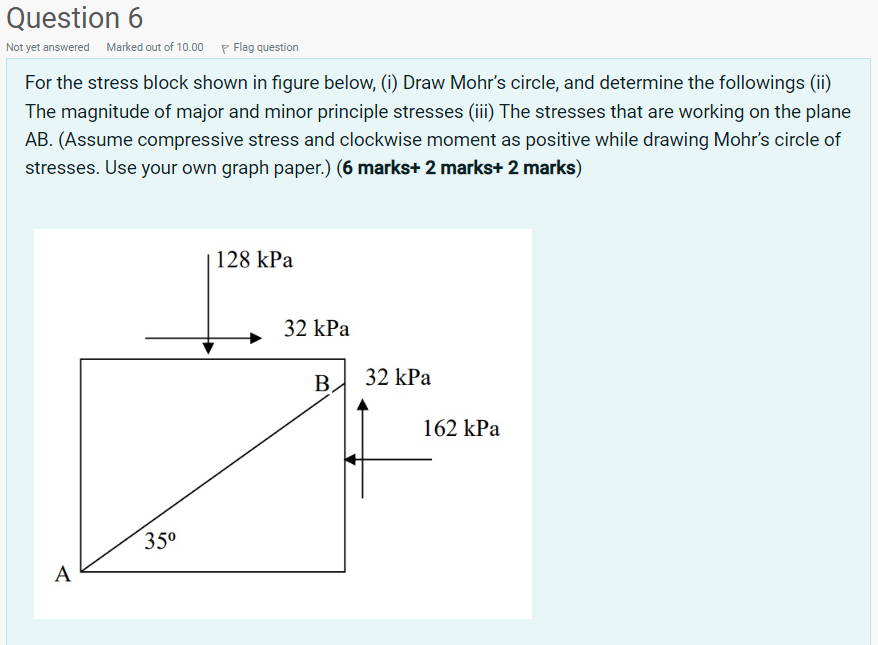

Question 6 Not yet answered Marked out of 10.00 Flag question For the stress block shown in figure below, (i) Draw Mohr's circle, and determine the followings (ii) The magnitude of major and minor principle stresses (iii) The stresses that are working on the plane AB. (Assume compressive stress and clockwise moment as positive while drawing Mohr's circle of stresses. Use your own graph paper.) (6 marks+ 2 marks+ 2 marks) 128 kPa B 32 kPa A 35⁰ 32 kPa 162 kPa
