The frame is made of two members (ABC and CDE) connected by a pin at C. a/ Determine the reactions at A and E. b/ Determ

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The frame is made of two members (ABC and CDE) connected by a pin at C. a/ Determine the reactions at A and E. b/ Determ

Post by answerhappygod »

The Frame Is Made Of Two Members Abc And Cde Connected By A Pin At C A Determine The Reactions At A And E B Determ 1
The Frame Is Made Of Two Members Abc And Cde Connected By A Pin At C A Determine The Reactions At A And E B Determ 1 (33.97 KiB) Viewed 13 times

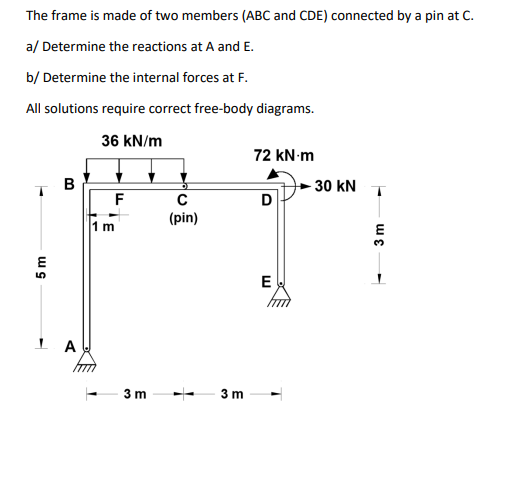

The frame is made of two members (ABC and CDE) connected by a pin at C. a/ Determine the reactions at A and E. b/ Determine the internal forces at F. All solutions require correct free-body diagrams. 36 kN/m 72 kN-m B F D E 5 m LA 1 m 3m с (pin) 3 m -30 kN 3 m
