For the beam shown, it is made of a nylon for which the allowable stress is 24 Mpa in tension and 30 MPa in compression.

Post by answerhappygod »

For The Beam Shown It Is Made Of A Nylon For Which The Allowable Stress Is 24 Mpa In Tension And 30 Mpa In Compression 1
For The Beam Shown It Is Made Of A Nylon For Which The Allowable Stress Is 24 Mpa In Tension And 30 Mpa In Compression 1 (43.8 KiB) Viewed 24 times
PLEASE SHOW ALL CALCULATIONS

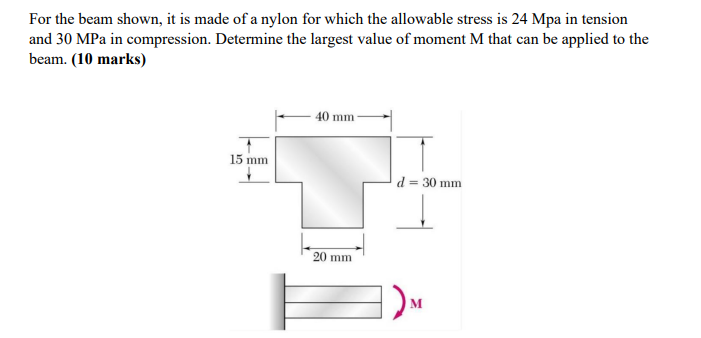

For the beam shown, it is made of a nylon for which the allowable stress is 24 Mpa in tension and 30 MPa in compression. Determine the largest value of moment M that can be applied to the beam. (10 marks) 40 mm 15 mm = 30 mm M 20 mm d=
