Assuming that the reaction of the ground is uniformly distributed, draw the shear and bending- moment diagrams for the b

Post by answerhappygod »

Assuming That The Reaction Of The Ground Is Uniformly Distributed Draw The Shear And Bending Moment Diagrams For The B 1
Assuming That The Reaction Of The Ground Is Uniformly Distributed Draw The Shear And Bending Moment Diagrams For The B 1 (79.68 KiB) Viewed 24 times
PLEASE SHOW ALL CALCULATIONS

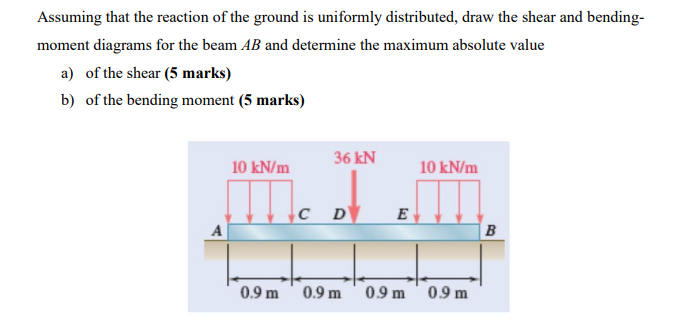

Assuming that the reaction of the ground is uniformly distributed, draw the shear and bending- moment diagrams for the beam AB and determine the maximum absolute value a) of the shear (5 marks) b) of the bending moment (5 marks) 36 kN 10 kN/m 10 kN/m A C D 0.9 m 0.9 m E 0.9 m 0.9 m B
