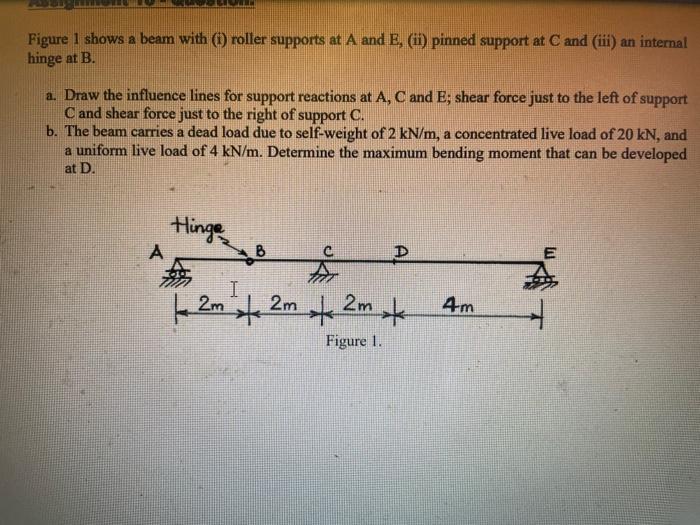

Figure 1 shows a beam with (i) roller supports at A and E, (ii) pinned support at C and (iii) an internal hinge at B. a.
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Figure 1 shows a beam with (i) roller supports at A and E, (ii) pinned support at C and (iii) an internal hinge at B. a.
Figure 1 shows a beam with (i) roller supports at A and E, (ii) pinned support at C and (iii) an internal hinge at B. a. Draw the influence lines for support reactions at A, C and E; shear force just to the left of support C and shear force just to the right of support C. b. The beam carries a dead load due to self-weight of 2 kN/m, a concentrated live load of 20 kN, and a uniform live load of 4 kN/m. Determine the maximum bending moment that can be developed at D. Hinge A B E A I 2m2m2m 4m + Figure 1.
