2.2 Examine the technical drawing in Figure 1 below, the top, front and right-side orthographic views are incomplete. Dr

Post by answerhappygod »

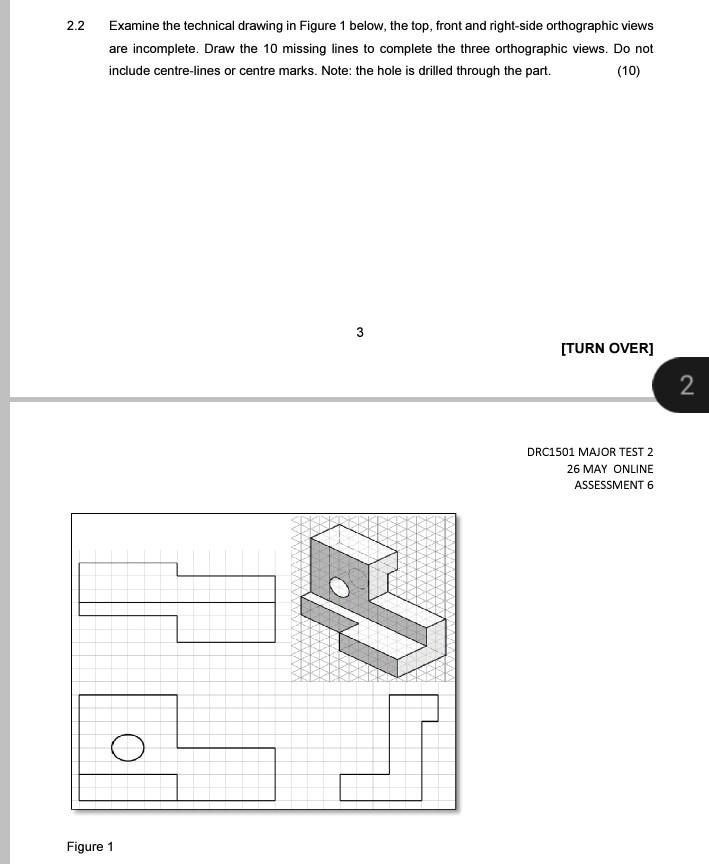

2 2 Examine The Technical Drawing In Figure 1 Below The Top Front And Right Side Orthographic Views Are Incomplete Dr 1
2 2 Examine The Technical Drawing In Figure 1 Below The Top Front And Right Side Orthographic Views Are Incomplete Dr 1 (51.66 KiB) Viewed 14 times
2.2 Examine the technical drawing in Figure 1 below, the top, front and right-side orthographic views are incomplete. Draw the 10 missing lines to complete the three orthographic views. Do not include centre-lines or centre marks. Note: the hole is drilled through the part. (10) 3 [TURN OVER] DRC1501 MAJOR TEST 2 26 MAY ONLINE ASSESSMENT 6 O Figure 1 20 2
