Situation 1 Shown Below Is A Truss With P 200 Kn Aa A B D E F G H Determine The Force In Member Cd Solve The Valu 1 (28.2 KiB) Viewed 22 times
PLEASE ANWER BOTH WILL GIVE THUMBS UP!

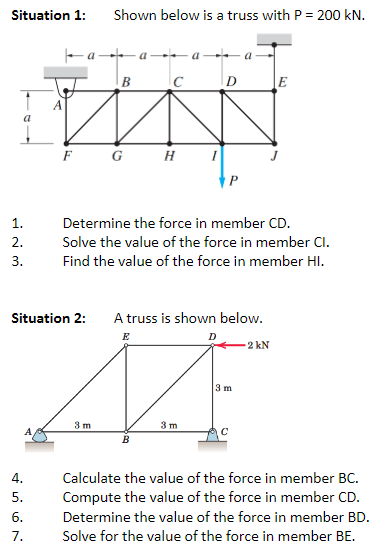

Situation 1: Shown below is a truss with P = 200 kN. -aa- a B D E F G H Determine the force in member CD. Solve the value of the force in member Cl. Find the value of the force in member Hl. A truss is shown below. E D 2 kN A 3 m 3 m 3m с B 4. Calculate the value of the force in member BC. 5. Compute the value of the force in member CD. 6. Determine the value of the force in member BD. 7. Solve for the value of the force in member BE. a 4567 1. 2. 3. Situation 2: A A с
